RT8575GQW

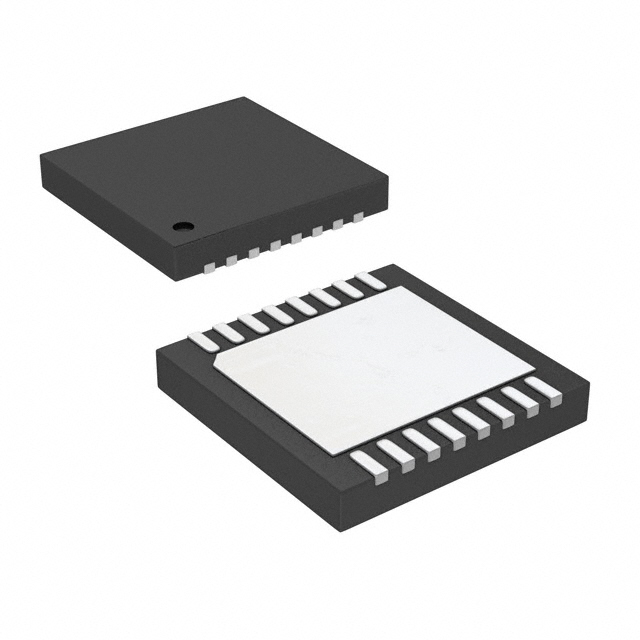

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RT8575GQW with confidence from Components-World.HK, 1 Year Warranty
Dowload RT8575GQW Details in PDFSee Product Specifications for product details.
Buy RT8575GQW with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RT8575GQW |
|---|---|
| Manufacturer | Richtek |
| Description | IC LED DRVR DIM W/ BOOST WDFN16 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.313 | $1.173 | $1.056 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.962 | $0.868 | $0.779 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RT8575GQW | Manufacturer | Richtek |
|---|---|---|---|
| Description | IC LED DRVR DIM W/ BOOST WDFN16 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45103 pcs | Data sheet | RT8575 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Min) | 4.2V |
| Voltage - Supply (Max) | 24V | Voltage - Output | 60V |
| Type | DC DC Regulator | Topology | Step-Up (Boost) |
| Supplier Device Package | 16-WDFN (5x5) | Series | - |
| Packaging | Cut Tape (CT) | Package / Case | 16-WFDFN Exposed Pad |
| Other Names | RT8575GQWCT | Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Yes |
| Frequency | 280kHz | Dimming | PWM |
| Detailed Description | LED Driver IC 4 Output DC DC Regulator Step-Up (Boost) PWM Dimming 150mA 16-WDFN (5x5) | Current - Output / Channel | 150mA |
| Applications | Backlight |
