Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > EVB_RT8296AHZSP

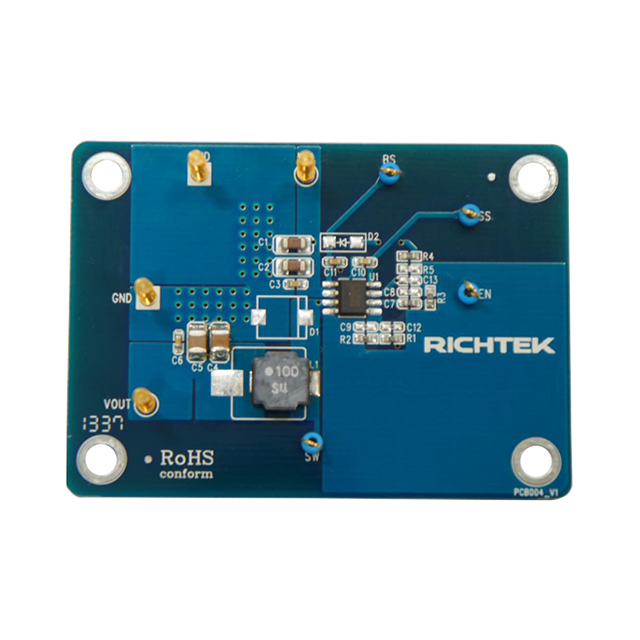

EVB_RT8296AHZSP

EVB_RT8296AHZSP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVB_RT8296AHZSP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EVB_RT8296AHZSP
Manufacturer	Richtek
Description	EVAL MODULE FOR RT8296AHZSP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2029 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$16.119

Product parameter
Data sheet

Product parameter

Part Number	EVB_RT8296AHZSP	Manufacturer	Richtek
Description	EVAL MODULE FOR RT8296AHZSP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2029 pcs	Data sheet	EVB_RT8296AHZSP RT8296A
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	4.5 V ~ 23 V	Utilized IC / Part	RT8296A
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	16 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	340kHz	Detailed Description	RT8296A - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	3A	Board Type	Fully Populated
