Home > Products > Integrated Circuits (ICs) > Embedded - Microcontrollers > DF2623FA20V

DF2623FA20V

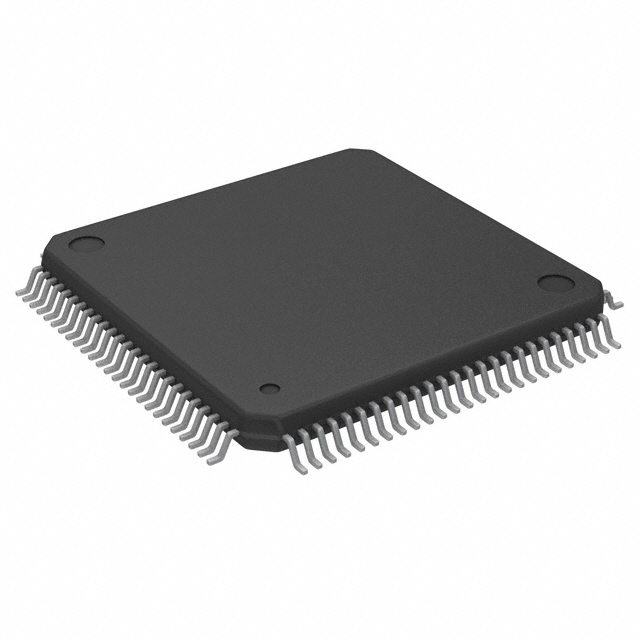

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF2623FA20V with confidence from Components-World.HK, 1 Year Warranty

Dowload DF2623FA20V Details in PDF

Request a Quote

Part Number	DF2623FA20V
Manufacturer	Renesas Electronics America
Description	IC MCU 16BIT 256KB FLASH 100QFP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5032 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	DF2623FA20V	Manufacturer	Renesas Electronics America
Description	IC MCU 16BIT 256KB FLASH 100QFP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5032 pcs	Data sheet	H8S/2621-2626 Hardware Manual
Category	Integrated Circuits (ICs)	Voltage - Supply (Vcc/Vdd)	3 V ~ 3.6 V
Supplier Device Package	100-QFP (14x14)	Speed	20MHz
Series	H8® H8S/2600	RAM Size	12K x 8
Program Memory Type	FLASH	Program Memory Size	256KB (256K x 8)
Peripherals	POR, PWM, WDT	Packaging	Tray
Package / Case	100-BFQFP	Oscillator Type	Internal
Operating Temperature	-20°C ~ 75°C (TA)	Number of I/O	53
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
EEPROM Size	-	Detailed Description	H8S/2600 H8® H8S/2600 Microcontroller IC 16-Bit 20MHz 256KB (256K x 8) FLASH 100-QFP (14x14)
Data Converters	A/D 16x10b; D/A 2x8b	Core Size	16-Bit
Core Processor	H8S/2600	Connectivity	CANbus, SCI, SmartCard
Base Part Number	DF2623
