Home > Products > RF/IF and RFID > Balun > RFXF9504-TR13

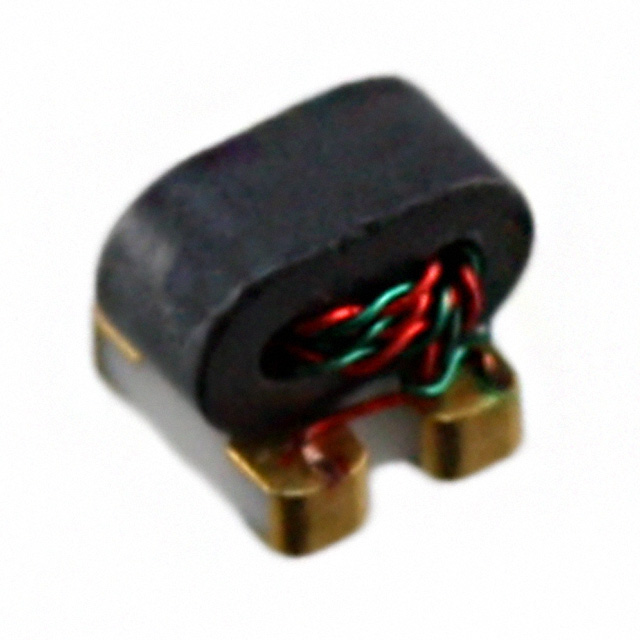

RFXF9504-TR13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RFXF9504-TR13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RFXF9504-TR13
Manufacturer	RFMD
Description	SMT TRANSFORMER 5MHZ-3GHZ
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4783 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	RFXF9504-TR13	Manufacturer	RFMD
Description	SMT TRANSFORMER 5MHZ-3GHZ	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4783 pcs	Data sheet	RFXF9504
Category	RF/IF and RFID	Series	-
RoHS Status	Tape & Reel (TR)	Return Loss (Min)	3.0dB
Polarization	4-SMD	Phase Difference	1:1
P1dB	-	Other Names	689-1066-2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Part Number	RFXF9504-TR13	Insertion Loss (Max)	-
Frequency Range	5MHz ~ 3GHz	Expanded Description	RF Balun 5MHz ~ 3GHz 1:1 4-SMD
Description	SMT TRANSFORMER 5MHZ-3GHZ
