Home > Products > RF/IF and RFID > RF Switches > RF5500

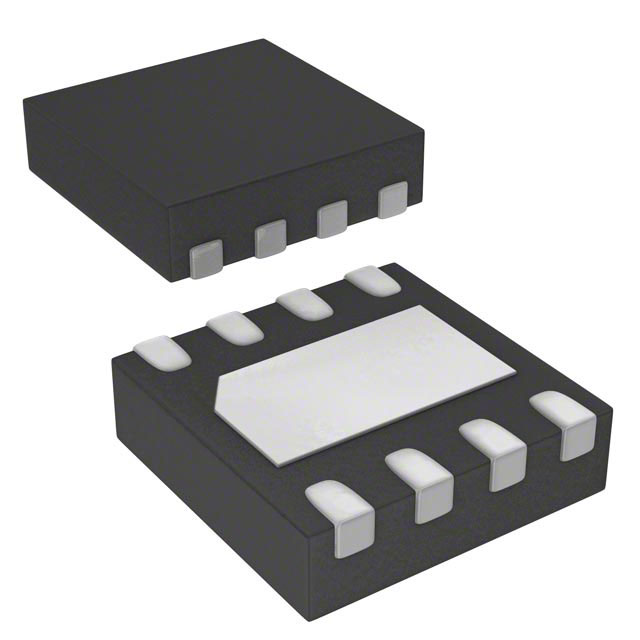

RF5500

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RF5500 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RF5500
Manufacturer	RFMD
Description	IC SWITCH WLAN SP3T 8DFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4903 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	RF5500	Manufacturer	RFMD
Description	IC SWITCH WLAN SP3T 8DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4903 pcs	Data sheet	RF5500
Category	RF/IF and RFID	Voltage - Supply	3V
Topology	-	Test Frequency	2.5GHz
Supplier Device Package	8-DFN (2x2)	Series	-
RF Type	802.11b/g/n	Packaging	Tube
Package / Case	8-UFDFN Exposed Pad	P1dB	28dBm
Operating Temperature	-40°C ~ 85°C	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Isolation	18dB
Insertion Loss	3.8dB	Impedance	50 Ohm
IIP3	-	Frequency Range	2.4GHz ~ 2.5GHz
Features	-	Detailed Description	RF Switch IC 802.11b/g/n SP3T 2.5GHz 50 Ohm 8-DFN (2x2)
Circuit	SP3T
