Home > Products > RF/IF and RFID > RF Transceiver Modules > RFD77101

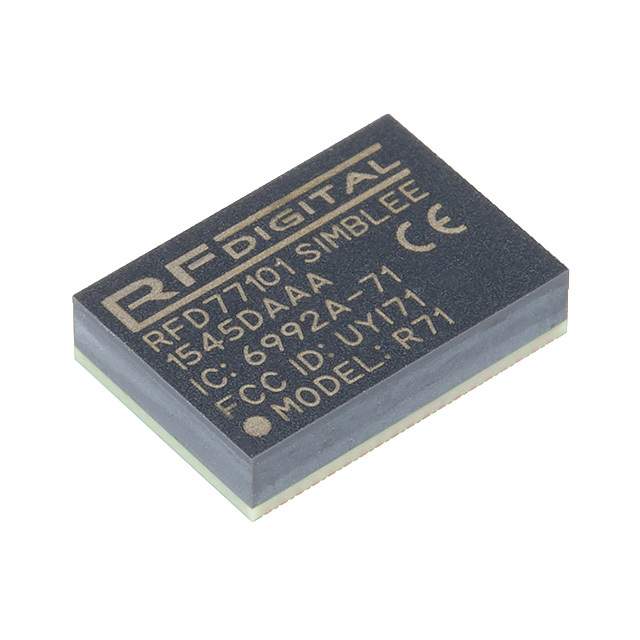

RFD77101

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RFD77101 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RFD77101
Manufacturer	RF Digital
Description	RF TXRX MOD BLUETOOTH CHIP ANT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5799 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	RFD77101	Manufacturer	RF Digital
Description	RF TXRX MOD BLUETOOTH CHIP ANT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5799 pcs	Data sheet	Simblee™ EcoSystem Explainer Getting Started with SimbleeCOM Simblee™ RFD77101 Datasheet Simblee™ User Guide Getting Started with SimbleeForMobile Simblee Quickstart Guide v1.0
Category	RF/IF and RFID	Voltage - Supply	1.8 V ~ 3.6 V
Utilized IC / Part	-	Series	Simblee™
Serial Interfaces	I²C, SPI, UART	Sensitivity	-96dBm
RF Family/Standard	Bluetooth	Protocol	Bluetooth v4.0
Power - Output	4dBm	Packaging	Tray
Package / Case	45-LGA Module	Other Names	1562-1034
Operating Temperature	-40°C ~ 85°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	6 (Time on Label)	Modulation	-
Memory Size	128kB Flash, 24kB RAM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	2.4GHz	Data Rate	4Mbps
Current - Transmitting	8mA ~ 12mA	Current - Receiving	10mA ~ 13mA
Antenna Type	Integrated, Chip
