Home > Products > RF/IF and RFID > RF Transceiver Modules > RFD22301

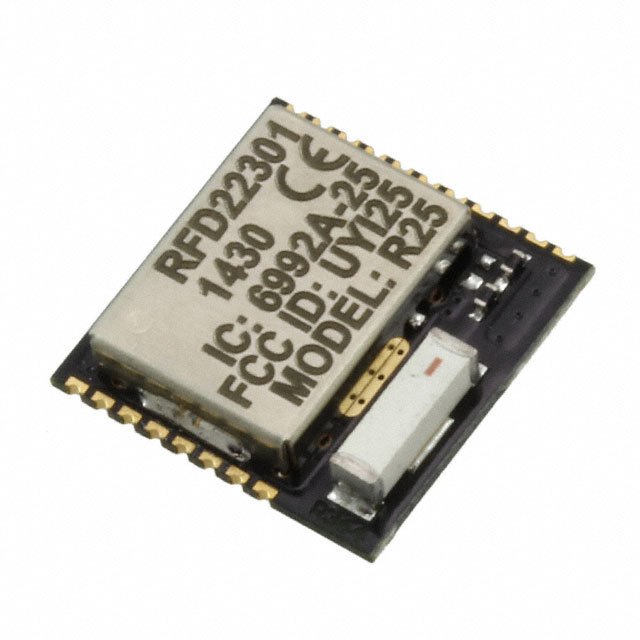

RFD22301

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RFD22301 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RFD22301
Manufacturer	RF Digital
Description	RF TXRX MOD BLUETOOTH CHIP ANT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5217 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	RFD22301	Manufacturer	RF Digital
Description	RF TXRX MOD BLUETOOTH CHIP ANT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5217 pcs	Data sheet	Rfduino Quickstart Guide RFD22301 Datasheet
Category	RF/IF and RFID	Voltage - Supply	2.1 V ~ 3.6 V
Utilized IC / Part	-	Series	-
Serial Interfaces	SPI, UART	Sensitivity	-93dBm
RF Family/Standard	Bluetooth	Protocol	Bluetooth v4.0
Power - Output	4dBm (Max)	Packaging	Tray
Package / Case	19-SMD Module	Other Names	1562-1016
Operating Temperature	-	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Modulation	-
Memory Size	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	2.4GHz	Data Rate	8Mbps
Current - Transmitting	12mA	Current - Receiving	12mA
Antenna Type	Integrated, Chip
