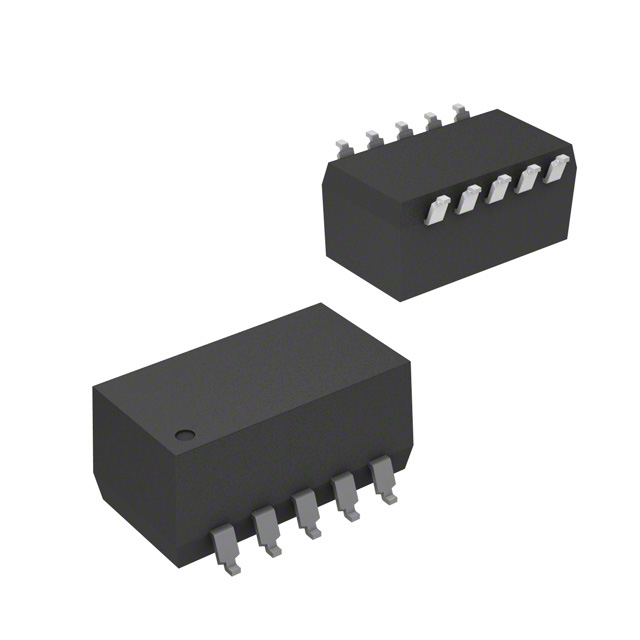

RSD10-2412
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RSD10-2412 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RSD10-2412 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RSD10-2412 |
|---|---|
| Manufacturer | RECOM Power |
| Description | DC DC CONVERTER +/-12V 1W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 33 pcs | 66 pcs | 165 pcs | 330 pcs | |
|---|---|---|---|---|---|
| $1.692 | $1.64 | $1.589 | $1.577 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RSD10-2412 | Manufacturer | RECOM Power |
|---|---|---|---|
| Description | DC DC CONVERTER +/-12V 1W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22106 pcs | Data sheet | RSS, RSD Econoline |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | -12V | Voltage - Output 1 | 12V |
| Voltage - Isolation | 1kV | Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V | Type | Isolated Module |
| Size / Dimension | 0.60" L x 0.32" W x 0.29" H (15.2mm x 8.2mm x 7.3mm) | Series | ECONOLINE RSD |
| Power (Watts) | 1W | Packaging | Tube |
| Package / Case | 10-SMD Module | Operating Temperature | -40°C ~ 85°C |
| Number of Outputs | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | SCP | Efficiency | 80% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 21.6V - 26.4V Input | Current - Output (Max) | 42mA, 42mA |
| Applications | ITE (Commercial) |
