Home > Products > Power Supplies - Board Mount > DC DC Converters > RP20-2415DFR/XC-HC

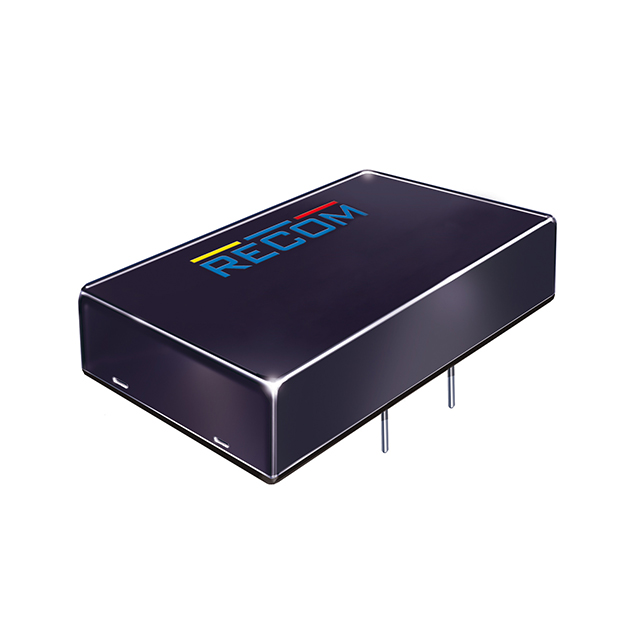

RP20-2415DFR/XC-HC

RP20-2415DFR/XC-HC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RP20-2415DFR/XC-HC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RP20-2415DFR/XC-HC
Manufacturer	RECOM Power
Description	DC DC CONVERTER +/-15V 20W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 996 pcs
Reference Price (In US Dollars)	20 pcs
Reference Price (In US Dollars)	$30.08

Product parameter
Data sheet

Product parameter

Part Number	RP20-2415DFR/XC-HC	Manufacturer	RECOM Power
Description	DC DC CONVERTER +/-15V 20W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	996 pcs	Data sheet	RP20-FR Series Datasheet
Category	Power Supplies - Board Mount	Voltage - Output 3	-
Voltage - Output 2	-15V	Voltage - Output 1	15V
Voltage - Isolation	1.6kV	Voltage - Input (Min)	9V
Voltage - Input (Max)	36V	Type	Isolated Module
Size / Dimension	2.00" L x 1.00" W x 0.66" H (50.8mm x 25.4mm x 16.8mm)	Series	ECONOLINE RP20-FR
Power (Watts)	20W	Packaging	Tray
Package / Case	6-DIP Module, 5 Leads	Other Names	30004330
Operating Temperature	-40°C ~ 79°C	Number of Outputs	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	OCP, OVP, SCP, UVLO	Efficiency	89%
Detailed Description	Isolated Module DC DC Converter 2 Output 15V -15V 667mA, 667mA 9V - 36V Input	Current - Output (Max)	667mA, 667mA
Applications	ITE (Commercial)
