Home > Products > Switches > Configurable Switch Components - Body > 1.30247.5520200

1.30247.5520200

1.30247.5520200

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1.30247.5520200 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1.30247.5520200
Manufacturer	RAFI
Description	CONFIG SW BODY TOGGLE NON-ILLUM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 3245 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$12.761	$12.009	$11.258
	$10.508	$10.133	$9.757

Product parameter
Data sheet

Product parameter

Part Number	1.30247.5520200	Manufacturer	RAFI
Description	CONFIG SW BODY TOGGLE NON-ILLUM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3245 pcs	Data sheet	1.30247.5520200 Datasheet RAFIX 22 QR General Information
Category	Switches	Type	Maintained
Series	RAFIX 22 QR	Requires	Contact Block(s)
Panel Cutout Dimensions	22.3mm (Round)	Other Names	1.30.247.552/0200 1302475520200 1715-1242
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Illumination	Non-Illuminated
Detailed Description	Configurable Switch Body Toggle Non-Illuminated	Actuator Type	Toggle
(Select First, Then Apply Filters) Compatible Series	Rafix 22QR

Related products
Related news

Related products

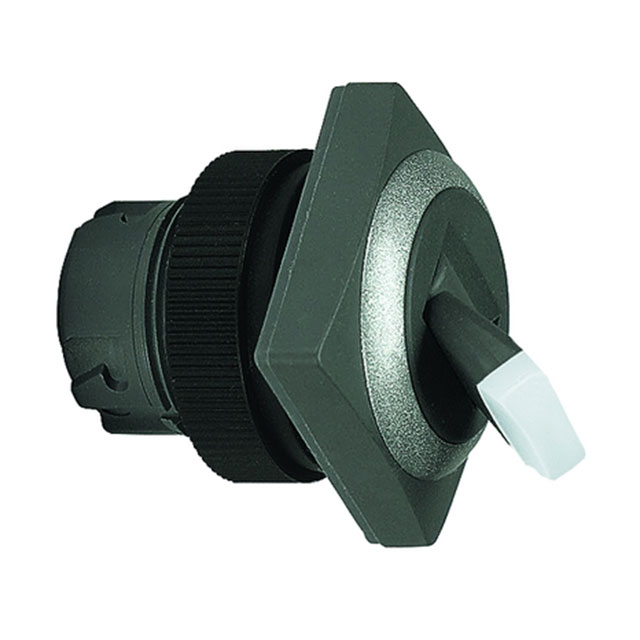

1.30247.5510207 Image
