Home > Products > Switches > Configurable Switch Components - Body > 1.30246.5120300

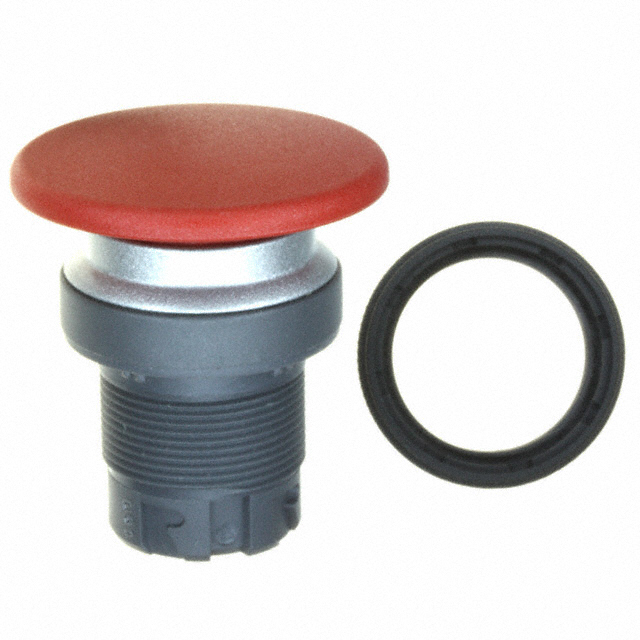

1.30246.5120300

1.30246.5120300

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1.30246.5120300 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1.30246.5120300
Manufacturer	RAFI
Description	CONFIG SW BODY PUSHBUT NON-ILLUM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3615 pcs
Reference Price (In US Dollars)	5 pcs
Reference Price (In US Dollars)	$9.742

Product parameter
Data sheet

Product parameter

Part Number	1.30246.5120300	Manufacturer	RAFI
Description	CONFIG SW BODY PUSHBUT NON-ILLUM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3615 pcs	Data sheet	RAFIX 22QR Brochure
Category	Switches	Type	-
Series	RAFIX 22 QR	Requires	Contact Block(s)
Panel Cutout Dimensions	22.3mm (Round)	Other Names	*1.30246.5120300 1.30.246.512/0300 1.30246.512//0300 1.30246.512/0300 CKN9359 CKN9359-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Illumination	Non-Illuminated
Detailed Description	Configurable Switch Body Pushbutton, Mushroom Non-Illuminated	Actuator Type	Pushbutton, Mushroom
(Select First, Then Apply Filters) Compatible Series	Rafix 22QR
