QTM452T1

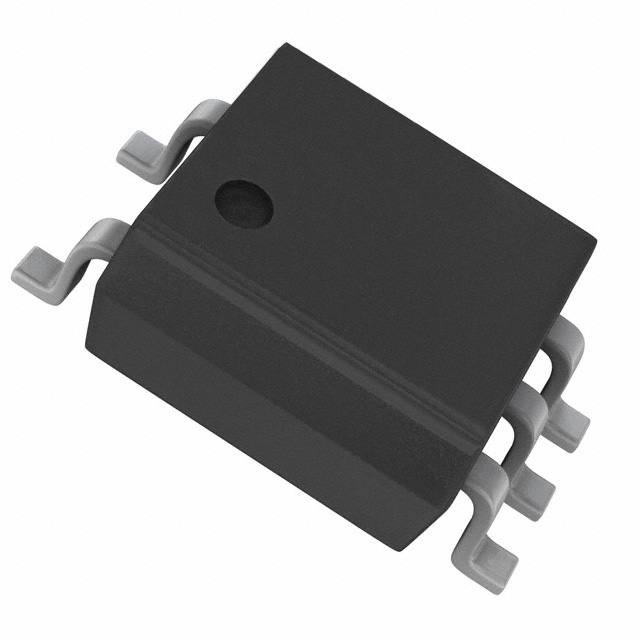

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy QTM452T1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy QTM452T1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | QTM452T1 |
|---|---|
| Manufacturer | QT Brightek |
| Description | MINI-FLAT PACKAGE 1 MBITS HIGH S |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.223 | $1.082 | $0.802 | $0.698 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.628 | $0.558 | $0.48 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | QTM452T1 | Manufacturer | QT Brightek |
|---|---|---|---|
| Description | MINI-FLAT PACKAGE 1 MBITS HIGH S | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79034 pcs | Data sheet | QTM452, 453 |
| Category | Isolators | Voltage - Output (Max) | 20V |
| Voltage - Isolation | 3750Vrms | Voltage - Forward (Vf) (Typ) | 1.45V |
| Vce Saturation (Max) | - | Turn On / Turn Off Time (Typ) | 350ns, 300ns |
| Supplier Device Package | 5-Mini-Flat | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Original-Reel® |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Output Type | Transistor |
| Other Names | 1516-1308-6 | Operating Temperature | -55°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 3750Vrms 1 Channel 5-Mini-Flat | Current Transfer Ratio (Min) | 20% @ 16mA |
| Current Transfer Ratio (Max) | 50% @ 16mA | Current - Output / Channel | 8mA |
| Current - DC Forward (If) (Max) | 25mA |
