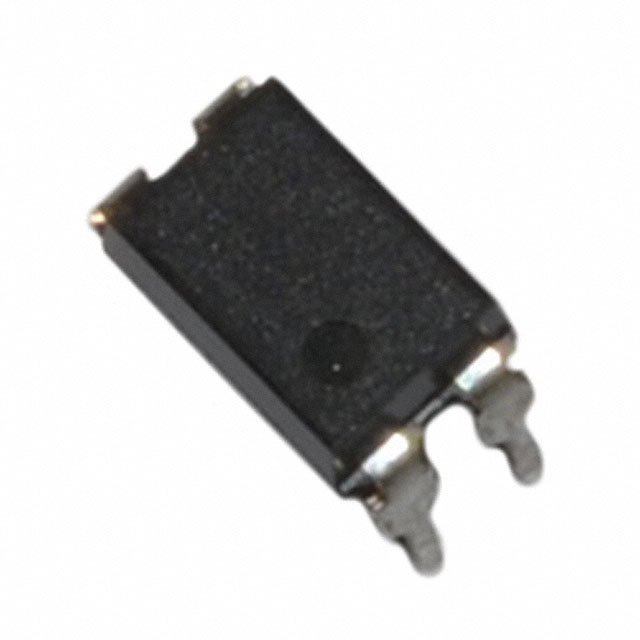

Q817
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy Q817 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy Q817 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | Q817 |
|---|---|
| Manufacturer | QT Brightek |
| Description | OPTOCPLR DC-INPUT 1.2V 4DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.14 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | Q817 | Manufacturer | QT Brightek |
|---|---|---|---|
| Description | OPTOCPLR DC-INPUT 1.2V 4DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157570 pcs | Data sheet | Q817 SeriesQ817 |
| Category | Isolators | Voltage - Output (Max) | 80V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-DIP | Series | - |
| Rise / Fall Time (Typ) | 6µs, 8µs | Packaging | Tube |
| Package / Case | 4-DIP (0.300", 7.62mm) | Output Type | Transistor |
| Other Names | 1516-1019 | Operating Temperature | -55°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP | Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA |
