W3544B

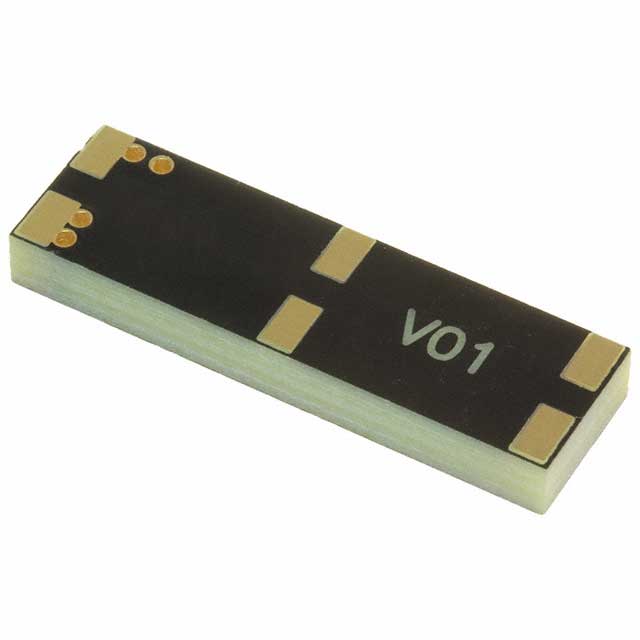

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy W3544B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy W3544B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | W3544B |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 850MHZ/900MHZ CHIP SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 140 pcs | 280 pcs | 700 pcs | 980 pcs | |
|---|---|---|---|---|---|
| $0.617 | $0.548 | $0.48 | $0.433 | ||
| 1400 pcs | 3500 pcs | 7000 pcs | |||
| $0.398 | $0.37 | $0.357 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | W3544B | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | RF ANT 850MHZ/900MHZ CHIP SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52907 pcs | Data sheet | Antennas SourceBook® Ver 13W3544A,B |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Solder | Series | - |
| Return Loss | -6.5dB, -5.7dB, -18.5dB, -13dB | Packaging | Tape & Reel (TR) |
| Other Names | 553-2573-2 | Number of Bands | 5 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.118" (3.00mm) |
| Gain | -1.5dBi, -1.1dBi, -1.1dBi, -1.5dBi | Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Frequency Group | Wide Band | Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz |
| Features | - | Detailed Description | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz GSM Chip RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz -1.5dBi, -1.1dBi, -1.1dBi, -1.5dBi Solder Surface Mount |
| Applications | GSM | Antenna Type | Chip |
