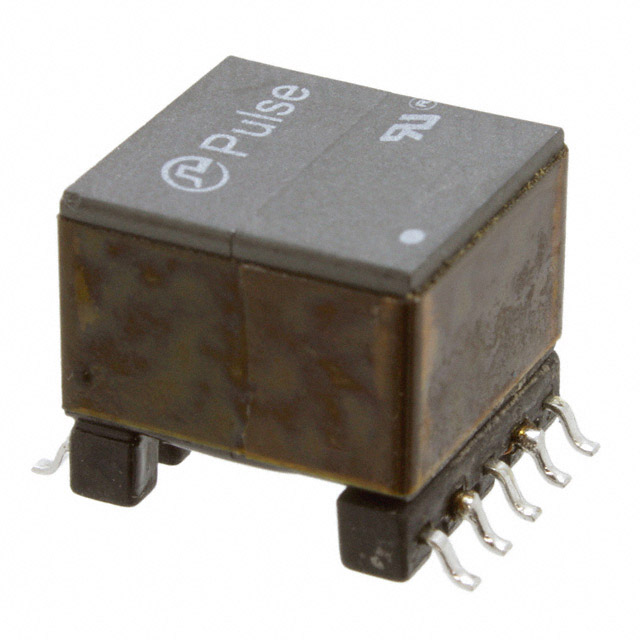

T6003NLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T6003NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy T6003NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | T6003NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | TRANSFORMER AUDIO 1:1 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 150 pcs | 300 pcs | 750 pcs | 1050 pcs | |
|---|---|---|---|---|---|
| $1.505 | $1.458 | $1.411 | $1.364 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | T6003NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | TRANSFORMER AUDIO 1:1 SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26528 pcs | Data sheet | T6003NL |
| Category | Transformers | Weight | 0.015 lb (6.8g) |
| Voltage - Isolation | 1500Vrms | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | General Purpose | Termination Style | Gull Wing |
| Size / Dimension | 0.530" L x 0.516" W (13.46mm x 13.11mm) | Series | - |
| Return Loss | 20dB @ 200Hz, 1dB @ 1kHz, 25dB @ 10kHz | Power Level | - |
| Packaging | Tape & Reel (TR) | Other Names | 553-2102-2 T6003NLT-ND |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz |
| Impedance - Secondary (Ohms) | 600 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.485" (12.32mm) | Frequency Response | - |
| Frequency Range | - | DC Resistance (DCR) - Secondary | 70 Ohm |
| DC Resistance (DCR) - Primary | 55 Ohm | Approvals | - |
