SB698SMA3

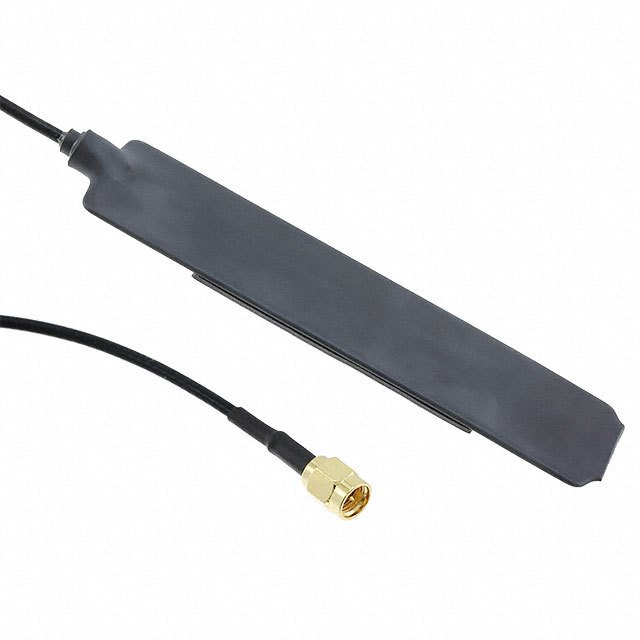

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SB698SMA3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SB698SMA3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SB698SMA3 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | RF ANT 829MHZ/1.94GHZ BLADE SMA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $5.69 | $5.172 | $4.784 | $4.397 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $4.009 | $3.75 | $3.44 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SB698SMA3 | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | RF ANT 829MHZ/1.94GHZ BLADE SMA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8801 pcs | Data sheet | SB698SMA3,12 DatasheetAntennas SourceBook® Ver 13 |
| Category | RF/IF and RFID | VSWR | 2.5 |
| Termination | Connector, SMA Male | Series | Stealth Blade |
| Return Loss | - | Power - Max | 3W |
| Packaging | Bulk | Other Names | 553-3658 |
| Number of Bands | 3 | Mounting Type | Adhesive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 |
| Height (Max) | 4.161" (105.70mm) | Gain | 2dBi |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.94GHz, 2.5GHz | Features | - |
| Detailed Description | 829MHz, 1.94GHz, 2.5GHz LTE Blade RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz 2dBi Connector, SMA Male Adhesive | Applications | LTE |
| Antenna Type | Blade |
