Home > Products > Transformers > Switching Converter, SMPS Transformers > PH9496NLT

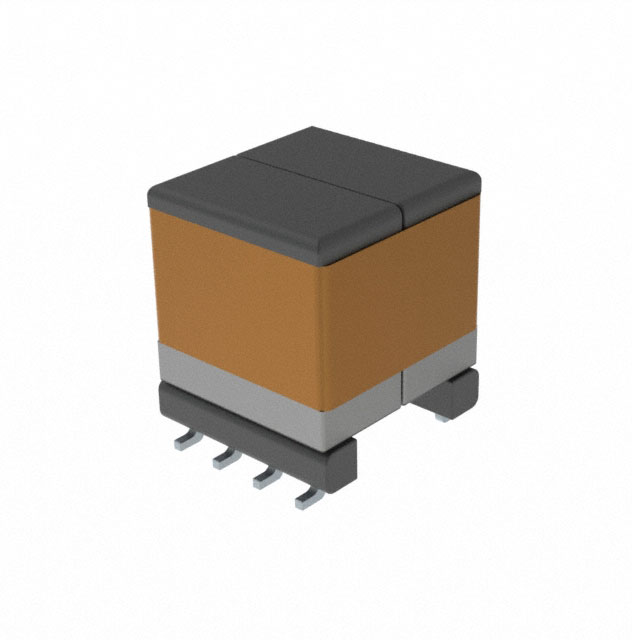

PH9496NLT

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PH9496NLT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PH9496NLT
Manufacturer	Pulse Electronics Corporation
Description	XFMR ISOLATION EP9 1:2.52 SMT
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 44876 pcs
Reference Price (In US Dollars)	175 pcs	350 pcs	525 pcs	1225 pcs
Reference Price (In US Dollars)	$0.881	$0.855	$0.829	$0.803

Product parameter
Data sheet

Product parameter

Part Number	PH9496NLT	Manufacturer	Pulse Electronics Corporation
Description	XFMR ISOLATION EP9 1:2.52 SMT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44876 pcs	Data sheet	PH9363, 9496, 0416NL Series
Category	Transformers	Voltage - Primary	8 ~ 18V
Voltage - Isolation	2500Vrms	Voltage - Auxiliary	-
Type	For DC/DC Converters	Style	-
Size / Dimension	0.413" L x 0.406" W (10.50mm x 10.30mm)	Series	-
Packaging	Tape & Reel (TR)	Other Names	553-4065-2
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	ACPL-32JT, ACPL-302J
Inductance @ Frequency	-	Height - Seated (Max)	0.492" (12.50mm)
Frequency	80kHz	Chipset Manufacturer	-
Applications	Flyback Converters
