PH0416NLT

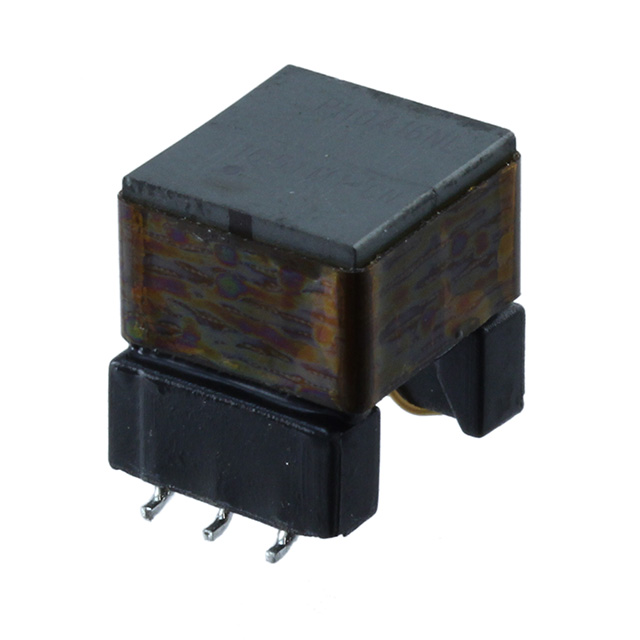

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PH0416NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PH0416NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PH0416NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | XFRMER FLYBACK DC/DC CONV SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.659 | $1.345 | $1.087 | $1.019 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PH0416NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | XFRMER FLYBACK DC/DC CONV SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34751 pcs | Data sheet | PH9363, 9496, 0416NL Series |
| Category | Transformers | Voltage - Primary | 8 ~ 18V |
| Voltage - Isolation | 5000Vrms | Voltage - Auxiliary | - |
| Type | For DC/DC Converters | Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Series | - | Packaging | Cut Tape (CT) |
| Other Names | 553-3663-1 | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Intended Chipset | ACPL-32JT, ACPL-302J | Inductance @ Frequency | - |
| Height - Seated (Max) | 0.502" (12.75mm) | Frequency | 75kHz |
| Footprint | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Chipset Manufacturer | - |
| Applications | Flyback Converters |
