PG0426.201NLT

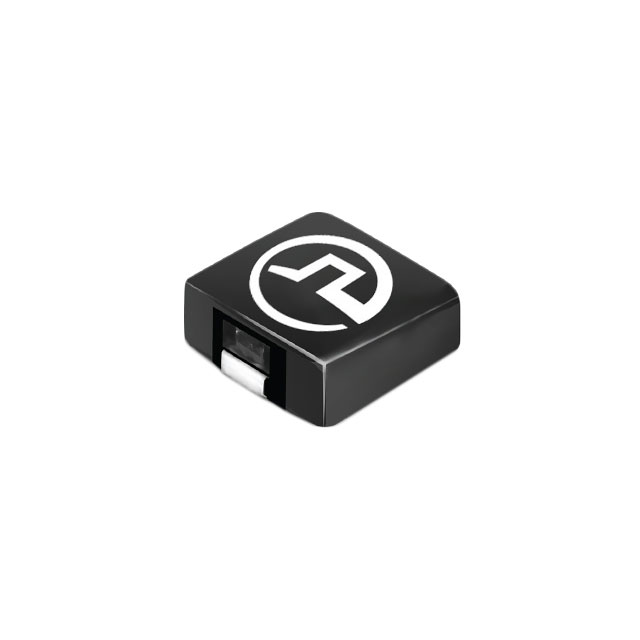

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PG0426.201NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PG0426.201NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PG0426.201NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 200NH 26A 2.2 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1400 pcs | 2800 pcs | 7000 pcs | ||
|---|---|---|---|---|---|
| $0.465 | $0.45 | $0.435 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PG0426.201NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 200NH 26A 2.2 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80305 pcs | Data sheet | PG0426NL Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.295" L x 0.276" W (7.50mm x 7.00mm) | Shielding | Shielded |
| Series | PG0426NL | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 553-3859-2 PG0426.201NLT-ND |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 200nH |
| Height - Seated (Max) | 0.126" (3.20mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 200nH Shielded Wirewound Inductor 26A 2.2 mOhm Max Nonstandard |
| DC Resistance (DCR) | 2.2 mOhm Max | Current Rating | 26A |
| Current - Saturation | 46A |
