PE-92414NL

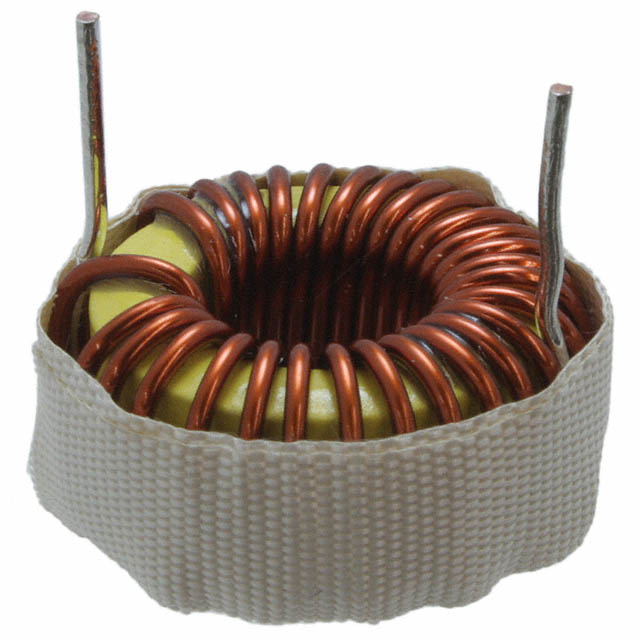

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-92414NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-92414NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-92414NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 35.6UH 5A 23 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.568 | $1.097 | $0.94 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.836 | $0.783 | $0.757 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-92414NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 35.6UH 5A 23 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43114 pcs | Data sheet | Toroid Vert/Low Profile KlipMount |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 1.050" Dia (26.67mm) | Shielding | Unshielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Radial | Other Names | 553-2117 PE-92414NL-ND PE92414NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 20kHz | Inductance | 35.6µH |
| Height - Seated (Max) | 0.550" (13.97mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 35.6µH Unshielded Toroidal Inductor 5A 23 mOhm Max Radial |
| DC Resistance (DCR) | 23 mOhm Max | Current Rating | 5A |
| Current - Saturation | - |
