PE-67050NL

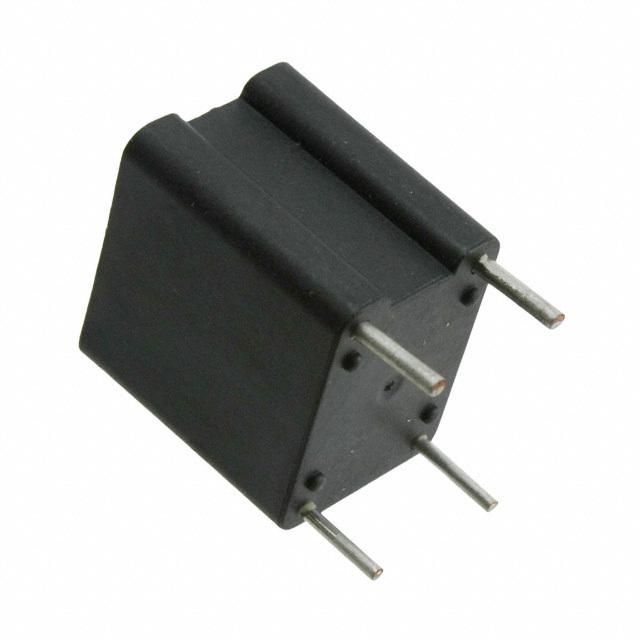

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-67050NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-67050NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-67050NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 35A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $2.016 | $1.633 | $1.32 | $1.237 | ||
| 160 pcs | 320 pcs | 560 pcs | 1040 pcs | ||
| $1.181 | $1.146 | $1.112 | $1.077 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-67050NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 35A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32225 pcs | Data sheet | PE-67050/100/200/300 |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 0.565" L x 0.750" W (14.35mm x 19.05mm) |
| Series | - | Ratings | - |
| Packaging | Tray | Other Names | 553-2684 PE-67050NL-ND |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 5mH | Height - Seated (Max) | 0.750" (19.05mm) |
| Frequency Range | 10kHz ~ 200kHz | Energy Time (E.T.) | - |
| Detailed Description | 35A Current Sense Transformer 10kHz ~ 200kHz 15 Ohm Primary, 700 mOhm Secondary 5mH Through Hole | DC Resistance (DCR) | 15 Ohm Primary, 700 mOhm Secondary |
| Current Ratio | 50:1 | Current Rating | 35A |
