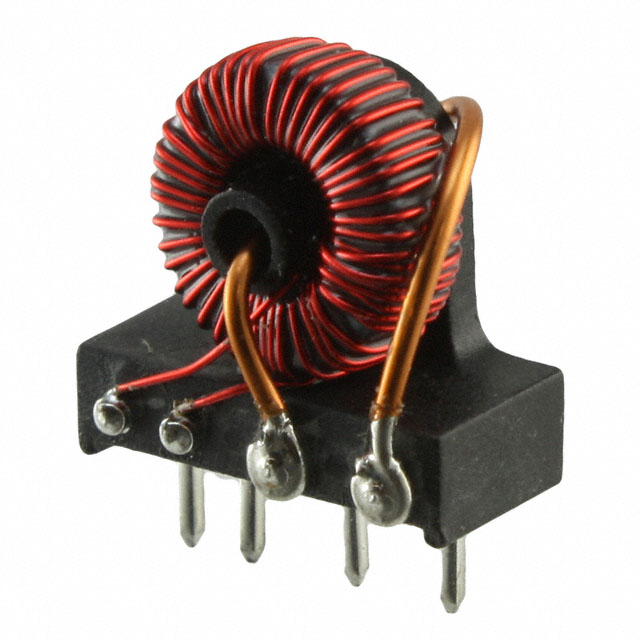

PE-64978NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-64978NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-64978NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-64978NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 20A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 35 pcs | 70 pcs | |
|---|---|---|---|---|---|
| $3.77 | $2.889 | $2.448 | $2.408 | ||
| 105 pcs | 280 pcs | 525 pcs | 1015 pcs | ||
| $2.287 | $2.263 | $2.231 | $2.207 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-64978NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 20A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17073 pcs | Data sheet | PE-52876,77,78 |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | - |
| Termination Style | PC Pin | Size / Dimension | 0.550" L x 0.380" W (13.97mm x 9.65mm) |
| Series | THT | Ratings | - |
| Packaging | Tray | Other Names | 553-1889-5 PE-64978NL-ND PE64978NL |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 4mH | Height - Seated (Max) | 0.580" (14.73mm) |
| Frequency Range | 200kHz ~ 500kHz | Energy Time (E.T.) | - |
| Detailed Description | 20A Current Sense Transformer 200kHz ~ 500kHz 6 mOhm Primary, 240 mOhm Secondary 4mH Through Hole | DC Resistance (DCR) | 6 mOhm Primary, 240 mOhm Secondary |
| Current Ratio | 50:1 | Current Rating | 20A |
