PE-54044NL

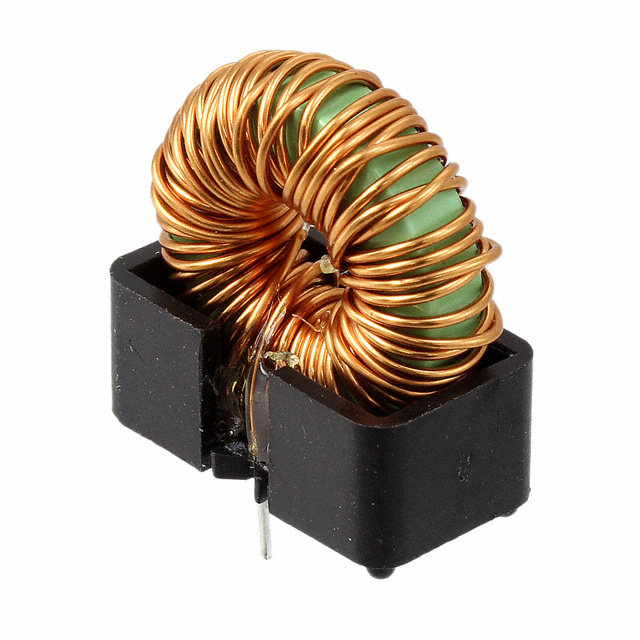

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-54044NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-54044NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-54044NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 77UH 3A 80 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 55 pcs | 110 pcs | ||
|---|---|---|---|---|---|
| $1.128 | $0.79 | $0.677 | |||
| 550 pcs | 1045 pcs | 2530 pcs | |||
| $0.602 | $0.564 | $0.545 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-54044NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 77UH 3A 80 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70312 pcs | Data sheet | THT/SMT Power Inductors - Toroid, Simple Switcher |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.830" L x 0.450" W (21.09mm x 11.43mm) | Shielding | Shielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Radial | Other Names | 553-2112 PE-54044NL-ND PE54044NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 20kHz | Inductance | 77µH |
| Height - Seated (Max) | 0.950" (24.13mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 77µH Shielded Toroidal Inductor 3A 80 mOhm Radial |
| DC Resistance (DCR) | 80 mOhm | Current Rating | 3A |
| Current - Saturation | - |
