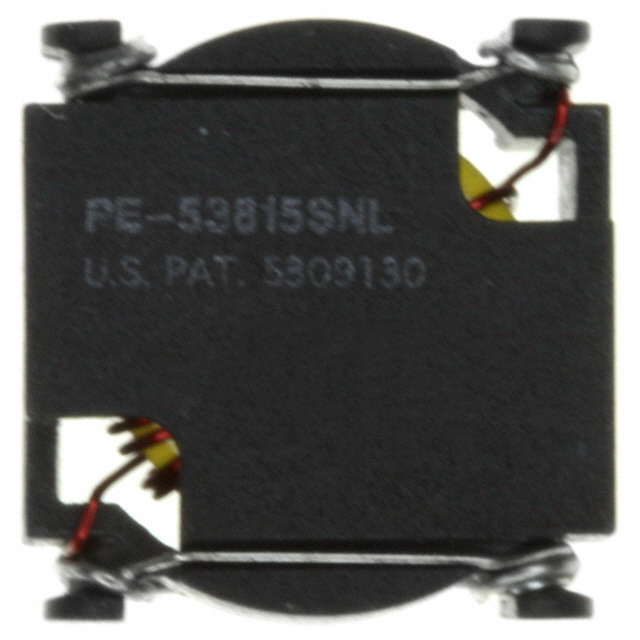

PE-53815SNL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-53815SNL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-53815SNL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-53815SNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 26UH 840MA 200 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.922 | $0.851 | $0.595 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.482 | $0.439 | $0.425 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-53815SNL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 26UH 840MA 200 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75159 pcs | Data sheet | THT/SMT Power Inductors - Toroid, Simple Switcher |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.440" L x 0.435" W (11.18mm x 11.05mm) | Shielding | Shielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Nonstandard | Other Names | 553-1399 PE53815SNL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 26µH | Height - Seated (Max) | 0.360" (9.14mm) |
| Frequency - Self Resonant | - | Features | - |
| Detailed Description | 26µH Shielded Toroidal Inductor 840mA 200 mOhm Nonstandard | DC Resistance (DCR) | 200 mOhm |
| Current Rating | 840mA | Current - Saturation | - |
