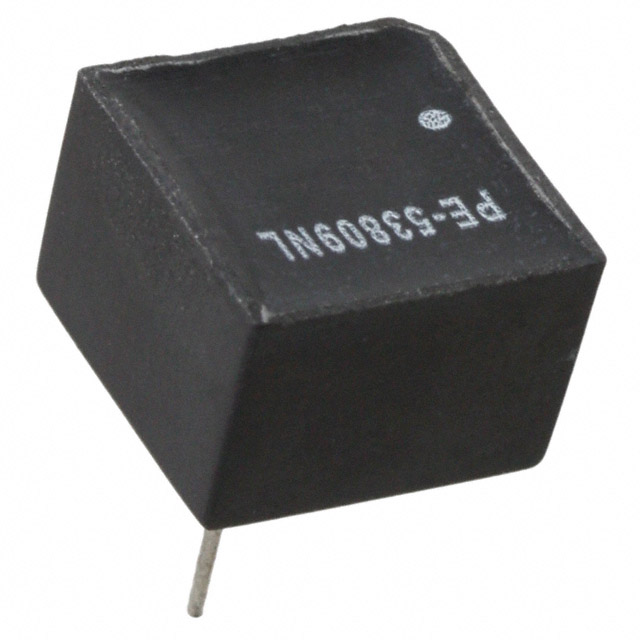

PE-53809NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE-53809NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE-53809NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE-53809NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 256UH 250MA 2.2 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.83 | $0.599 | $0.535 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.433 | $0.395 | $0.382 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE-53809NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 256UH 250MA 2.2 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101869 pcs | Data sheet | THT/SMT Power Inductors - Toroid, Simple Switcher |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.400" L x 0.400" W (10.16mm x 10.16mm) | Shielding | Shielded |
| Series | - | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Radial | Other Names | 553-1726 PE-53809NL-ND PE53809NL |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 256µH | Height - Seated (Max) | 0.300" (7.62mm) |
| Frequency - Self Resonant | - | Features | - |
| Detailed Description | 256µH Shielded Toroidal Inductor 250mA 2.2 Ohm Radial | DC Resistance (DCR) | 2.2 Ohm |
| Current Rating | 250mA | Current - Saturation | - |
