PD0120.702NLT

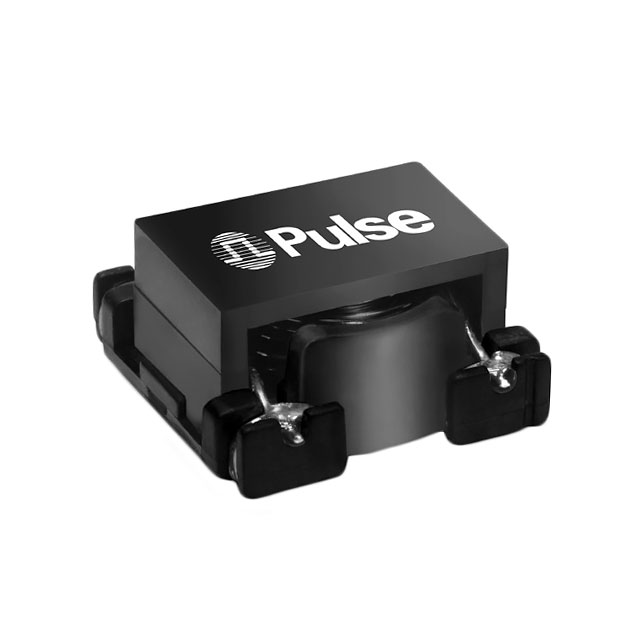

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD0120.702NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD0120.702NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD0120.702NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 7.2UH 8.6A 10 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1250 pcs | ||||
|---|---|---|---|---|---|
| $0.499 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD0120.702NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 7.2UH 8.6A 10 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66699 pcs | Data sheet | PD0120NL Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.638" L x 0.628" W (16.20mm x 15.95mm) | Shielding | Unshielded |
| Series | PD0120NL | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 7.2µH |
| Height - Seated (Max) | 0.323" (8.20mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 7.2µH Unshielded Wirewound Inductor 8.6A 10 mOhm Max Nonstandard |
| DC Resistance (DCR) | 10 mOhm Max | Current Rating | 8.6A |
| Current - Saturation | 12.6A |
