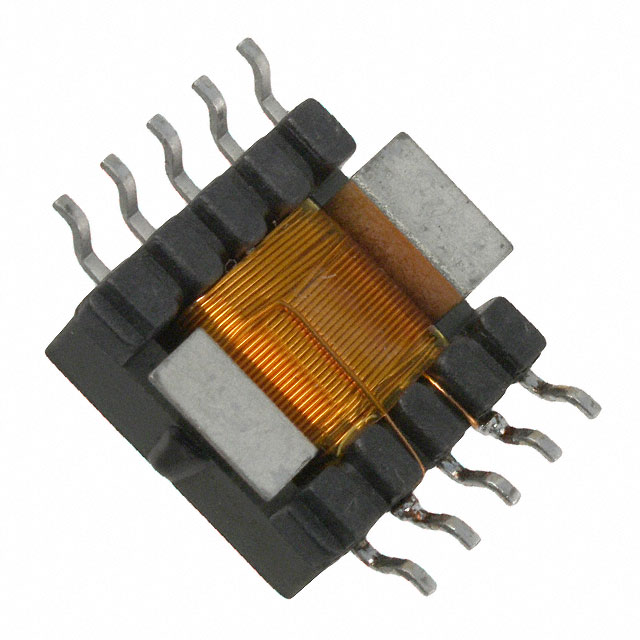

PB0027NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PB0027NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PB0027NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PB0027NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 200:1 35A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 70 pcs | 140 pcs |
|---|---|---|---|---|---|
| $1.141 | $0.925 | $0.748 | $0.701 | $0.669 | |
| 280 pcs | 560 pcs | 1050 pcs | 5040 pcs | ||
| $0.65 | $0.63 | $0.61 | $0.561 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PB0027NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 200:1 35A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67930 pcs | Data sheet | PB002xNL Series |
| Category | Transformers | Weight | - |
| Type | Invasive | Turns Ratio - Primary:Secondary | 200:1 |
| Termination Style | Gull Wing | Size / Dimension | 0.591" L x 0.784" W (15.00mm x 19.91mm) |
| Series | PB002XNL | Ratings | - |
| Packaging | Tray | Other Names | 553-1545 PB0027NL-ND |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 22.4mH | Height - Seated (Max) | 0.394" (10.00mm) |
| Frequency Range | 50kHz ~ 500kHz | Energy Time (E.T.) | - |
| Detailed Description | 35A 200:1 Current Sense Transformer 50kHz ~ 500kHz 0.42 mOhm Primary, 2.9 Ohm Secondary 22.4mH Surface Mount | DC Resistance (DCR) | 0.42 mOhm Primary, 2.9 Ohm Secondary |
| Current Ratio | - | Current Rating | 35A |
