PA4546.101NLT

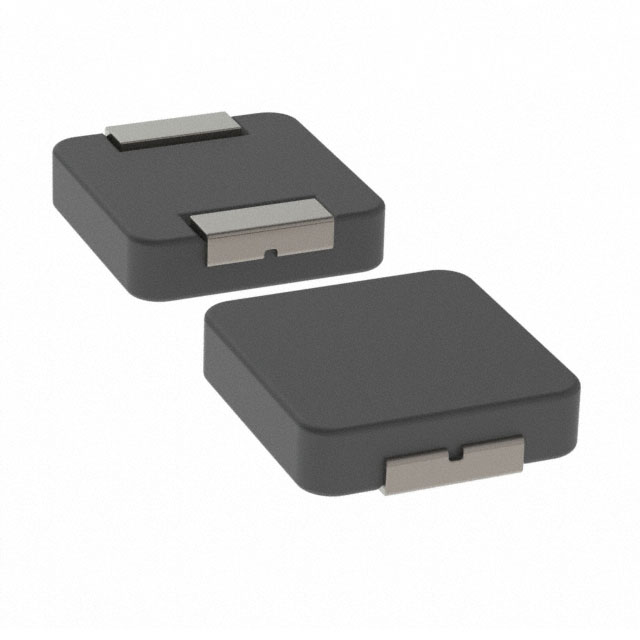

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA4546.101NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA4546.101NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA4546.101NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | INDUCTOR 0.1UH SMT 4.7 X 4.3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.208 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA4546.101NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | INDUCTOR 0.1UH SMT 4.7 X 4.3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 112709 pcs | Data sheet | PA4546.zzzNLT Series |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | Shielding | Unshielded |
| Series | PA4546.XXXNLT | Ratings | - |
| Q @ Freq | - | Package / Case | Nonstandard |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 100nH |
| Height - Seated (Max) | 0.047" (1.20mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 100nH Unshielded Molded Inductor 11.5A 5.5 mOhm Max Nonstandard |
| DC Resistance (DCR) | 5.5 mOhm Max | Current Rating | 11.5A |
| Current - Saturation | 25A |
