PA4345.221NLT

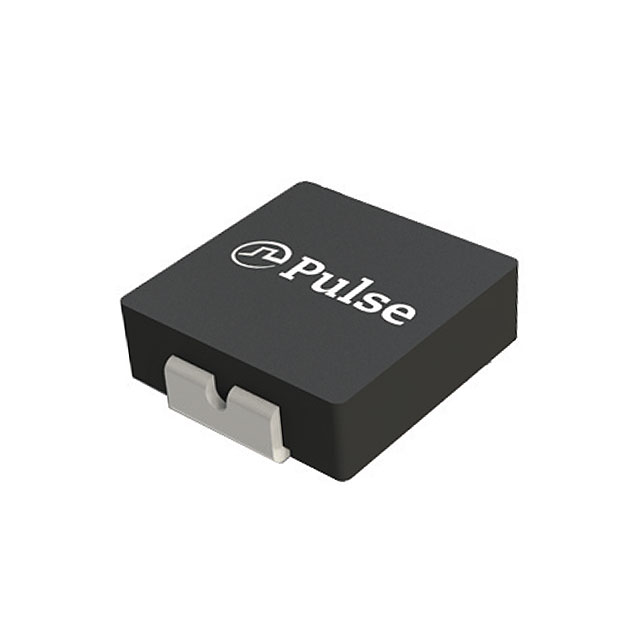

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA4345.221NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA4345.221NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA4345.221NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 220NH 15A 5.5 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.166 | $0.161 | $0.155 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA4345.221NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 220NH 15A 5.5 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 137202 pcs | Data sheet | PA4345NLT Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.213" W (6.00mm x 5.40mm) | Shielding | Shielded |
| Series | PA4345.XXXNLT | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 553-3483-2 PA4345.221NLT-ND |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 220nH |
| Height - Seated (Max) | 0.079" (2.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 220nH Shielded Molded Inductor 15A 5.5 mOhm Max Nonstandard |
| DC Resistance (DCR) | 5.5 mOhm Max | Current Rating | 15A |
| Current - Saturation | 25A |
