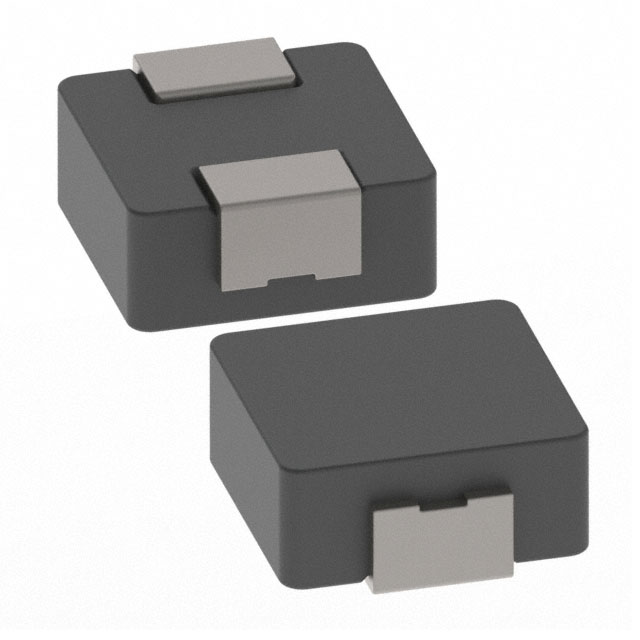

PA4341.103ANLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA4341.103ANLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA4341.103ANLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA4341.103ANLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | INDUCTOR 10 UH SMT 7.6 X 6.9 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.173 | $0.167 | $0.162 | $0.156 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA4341.103ANLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | INDUCTOR 10 UH SMT 7.6 X 6.9 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 151604 pcs | Data sheet | PA4341.zzzANLT Series |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Shielding | Shielded |
| Series | PA4341.XXXANLT | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 553-4009-2 |
| Operating Temperature | -55°C ~ 155°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 10µH |
| Height - Seated (Max) | 0.118" (3.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 10µH Shielded Molded Inductor 4A 68 mOhm Max Nonstandard |
| DC Resistance (DCR) | 68 mOhm Max | Current Rating | 4A |
| Current - Saturation | 5.5A |
