PA4309.104NLT

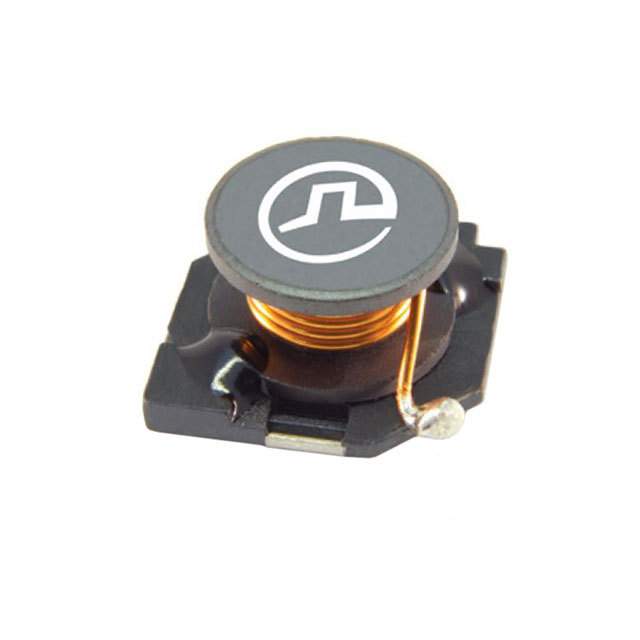

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA4309.104NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA4309.104NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA4309.104NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 100UH 3.5A 405 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | 12500 pcs |
|---|---|---|---|---|---|
| $0.209 | $0.186 | $0.18 | $0.174 | $0.168 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PA4309.104NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 100UH 3.5A 405 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 127276 pcs | Data sheet | PA43(09,10).zzzNLT Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) | Shielding | Unshielded |
| Series | PA4309.XXXNL | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 553-3606-2 PA4309.104NLT-ND |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 100µH |
| Height - Seated (Max) | 0.276" (7.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 100µH Unshielded Wirewound Inductor 3.5A 405 mOhm Max Nonstandard |
| DC Resistance (DCR) | 405 mOhm Max | Current Rating | 3.5A |
| Current - Saturation | - |
