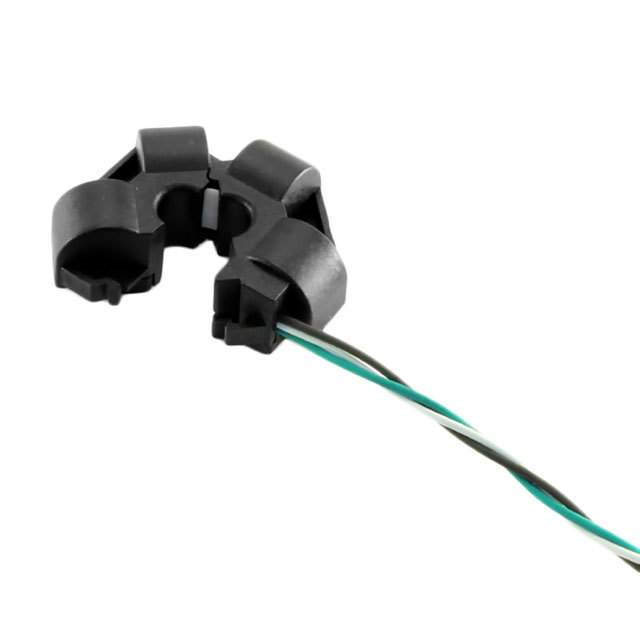

PA3828NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA3828NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA3828NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA3828NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 100A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 20 pcs | 40 pcs | |
|---|---|---|---|---|---|
| $4.436 | $4.345 | $3.621 | $3.35 | ||
| 60 pcs | 100 pcs | 500 pcs | 1000 pcs | ||
| $3.259 | $2.806 | $2.625 | $2.49 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA3828NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 100A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15610 pcs | Data sheet | PA3828NL Series |
| Category | Transformers | Weight | - |
| Type | Non-Invasive (Split Core) | Turns Ratio - Primary:Secondary | - |
| Termination Style | - | Size / Dimension | 1.280" L x 1.280" W (32.50mm x 32.50mm) |
| Series | - | Ratings | - |
| Packaging | Tray | Other Names | 553-2676 PA3828NL-ND Q8752417 |
| Mounting Type | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.532" (13.50mm) | Frequency Range | - |
| Energy Time (E.T.) | - | Detailed Description | 100A Current Sense Transformer |
| DC Resistance (DCR) | - | Current Ratio | - |
| Current Rating | 100A |
