PA3779.141HL

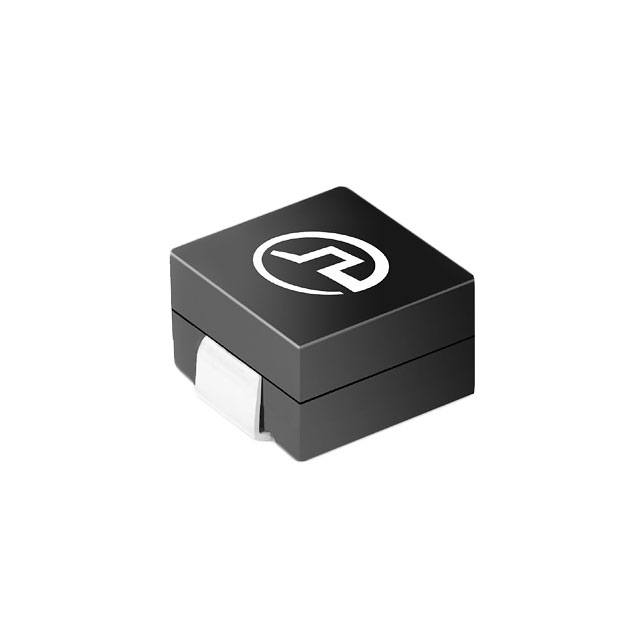

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA3779.141HL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA3779.141HL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA3779.141HL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 140NH 56A 0.29 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $0.437 | $0.406 | $0.293 | |||
| 600 pcs | 1080 pcs | 2520 pcs | |||
| $0.225 | $0.20 | $0.193 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA3779.141HL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 140NH 56A 0.29 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123639 pcs | Data sheet | PA3779.yyyHL Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±15% | Supplier Device Package | - |
| Size / Dimension | 0.449" L x 0.276" W (11.40mm x 7.00mm) | Shielding | Unshielded |
| Series | PA3779.XXXHL | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Nonstandard | Other Names | 553-2962 |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 140nH |
| Height - Seated (Max) | 0.315" (8.00mm) | Frequency - Self Resonant | - |
| Features | - | Detailed Description | 140nH Unshielded Inductor 56A 0.29 mOhm Nonstandard |
| DC Resistance (DCR) | 0.29 mOhm | Current Rating | 56A |
| Current - Saturation | 86A |
