PA2777NL

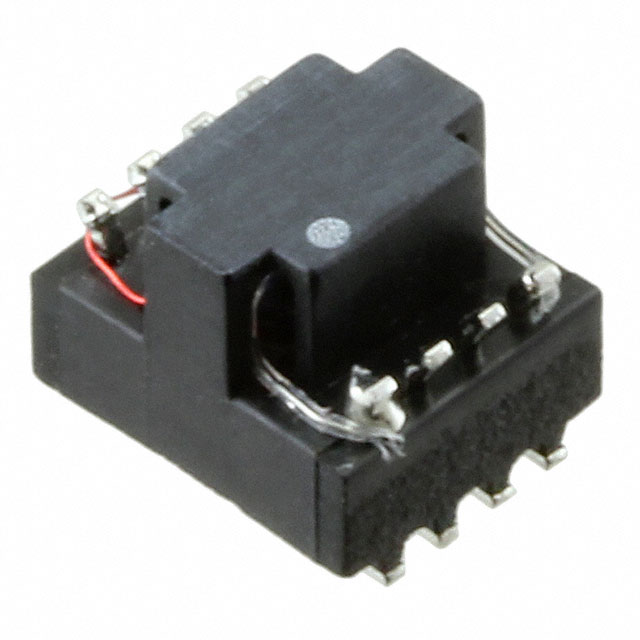

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA2777NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA2777NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA2777NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1:1 335.2UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 120 pcs |
|---|---|---|---|---|---|
| $1.123 | $0.91 | $0.736 | $0.69 | $0.659 | |
| 360 pcs | 600 pcs | 1080 pcs | 5040 pcs | ||
| $0.639 | $0.62 | $0.601 | $0.552 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA2777NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1:1 335.2UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63607 pcs | Data sheet | SMT Gate Drive Transformers |
| Category | Transformers | Turns Ratio - Primary:Secondary | 1:1 |
| Transformer Type | - | Size / Dimension | 0.291" L x 0.248" W (7.40mm x 6.30mm) |
| Series | - | Other Names | 553-2945 |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 335.2µH |
| Height - Seated (Max) | 0.232" (5.90mm) | Energy Time (E.T.) | 9.3V µS |
