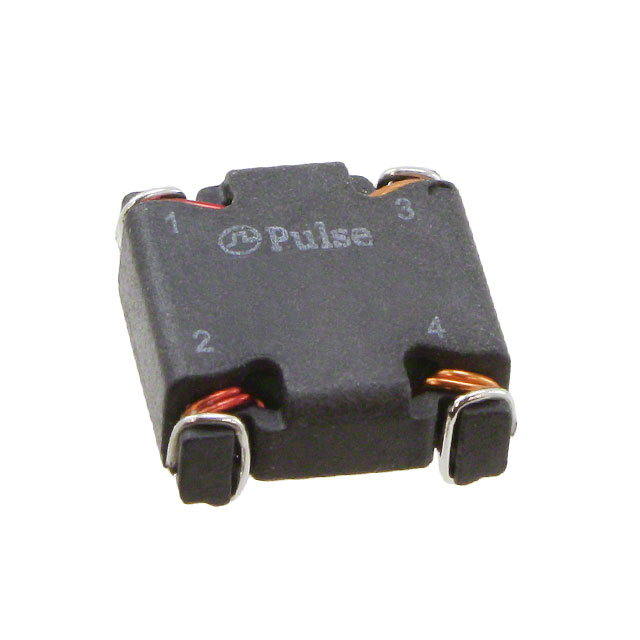

PA2743NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA2743NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA2743NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA2743NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | COMMON MODE CHOKE 3.3A 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 40 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $0.699 | $0.592 | $0.452 | |||
| 520 pcs | 1000 pcs | 2520 pcs | |||
| $0.366 | $0.334 | $0.323 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA2743NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | COMMON MODE CHOKE 3.3A 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59936 pcs | Data sheet | PA27xxNL Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Series | - | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pad |
| Other Names | 553-2181 PA2743NL-ND |
Operating Temperature | -40°C ~ 130°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 0.220" (5.60mm) |
| Filter Type | - | Features | - |
| Detailed Description | 2 Line Common Mode Choke Surface Mount 3.3A DCR 18 mOhm | DC Resistance (DCR) (Max) | 18 mOhm |
| Current Rating (Max) | 3.3A | Approvals | - |
