PA0432LNL

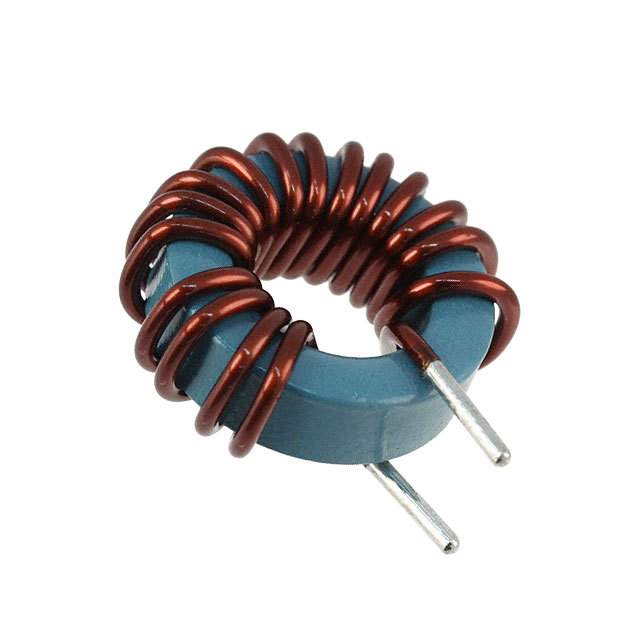

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PA0432LNL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PA0432LNL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PA0432LNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | FIXED IND 5UH 20.5A 7.5 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 60 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $0.872 | $0.631 | $0.564 | |||
| 540 pcs | 1020 pcs | 2520 pcs | |||
| $0.457 | $0.416 | $0.403 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PA0432LNL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 5UH 20.5A 7.5 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77553 pcs | Data sheet | THT Pwr Inductors - Bare Coil Series |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.980" Dia x 0.441" W (24.90mm x 11.20mm) | Shielding | Unshielded |
| Series | Bare Coil | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Radial | Other Names | 553-1504 |
| Operating Temperature | -40°C ~ 130°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 12.1µH | Height - Seated (Max) | - |
| Frequency - Self Resonant | - | Features | - |
| Detailed Description | 12.1µH Unshielded Toroidal Inductor 20.5A 7.5 mOhm Max Radial | DC Resistance (DCR) | 7.5 mOhm Max |
| Current Rating | 20.5A | Current - Saturation | - |
