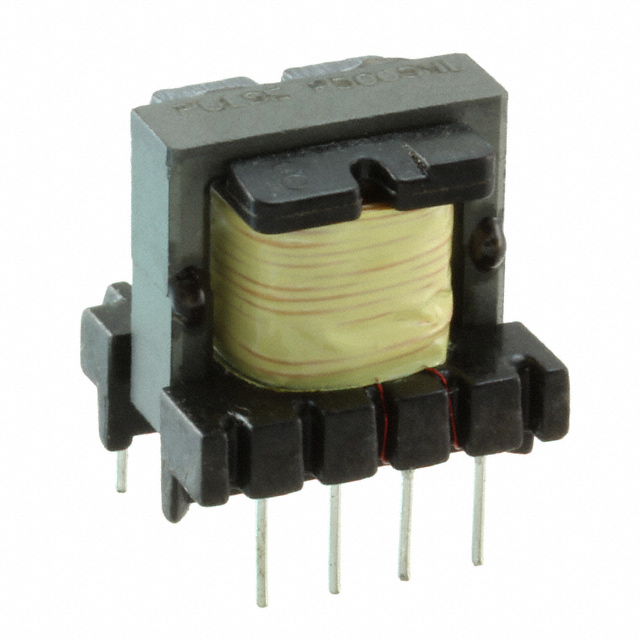

P5005NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P5005NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy P5005NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | P5005NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1:0.1:0.1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | 120 pcs |
|---|---|---|---|---|---|
| $1.045 | $0.846 | $0.684 | $0.641 | $0.612 | |
| 280 pcs | 520 pcs | 1000 pcs | 5000 pcs | ||
| $0.594 | $0.576 | $0.558 | $0.513 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | P5005NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1:0.1:0.1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69413 pcs | Data sheet | P500xNL, TNY253-255 Series |
| Category | Transformers | Turns Ratio - Primary:Secondary | 1:0.1:0.1 |
| Transformer Type | - | Size / Dimension | 0.717" L x 0.630" W (18.20mm x 16.00mm) |
| Series | - | Operating Temperature | -30°C ~ 110°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | - | Height - Seated (Max) | 0.697" (17.70mm) |
| Energy Time (E.T.) | - |
