P0599NLT

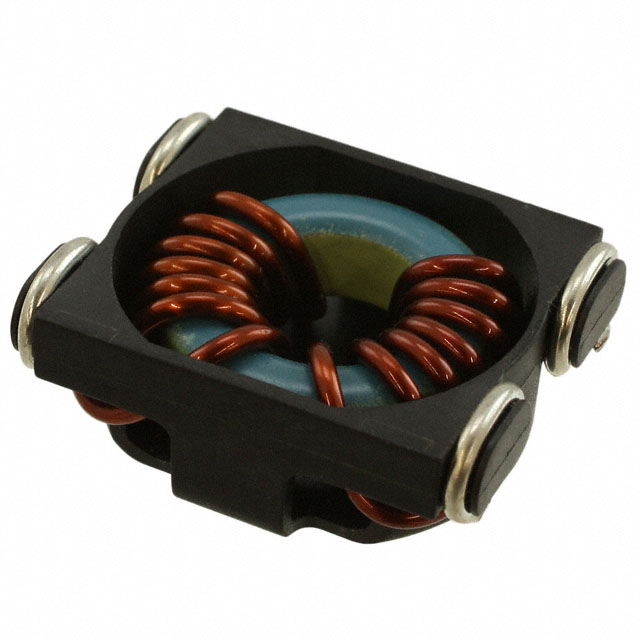

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P0599NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy P0599NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | P0599NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | INDUCT ARRAY 2 COIL 2.1UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 75 pcs | 150 pcs | 375 pcs | ||
|---|---|---|---|---|---|
| $0.894 | $0.766 | $0.724 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | P0599NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 2.1UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50341 pcs | Data sheet | HCCI-80 Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±15% |
| Size / Dimension | 1.220" L x 1.000" W (30.99mm x 25.40mm) | Shielding | Unshielded |
| Series | HCCI-80 | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Operating Temperature | -40°C ~ 130°C | Number of Coils | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 8.4µH |
| Inductance - Connected In Parallel | 2.1µH | Height | 0.500" (12.70mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 8.4µH Inductance - Connected in Series 2.1µH Inductance - Connected in Parallel 1.3 mOhm Max DC Resistance (DCR) - Parallel 38A Nonstandard | DC Resistance (DCR) - Series | 5.1 mOhm Max |
| DC Resistance (DCR) - Parallel | 1.3 mOhm Max | Current Rating - Series | 19A |
| Current Rating - Parallel | 38A |
