JXR1-0011NL

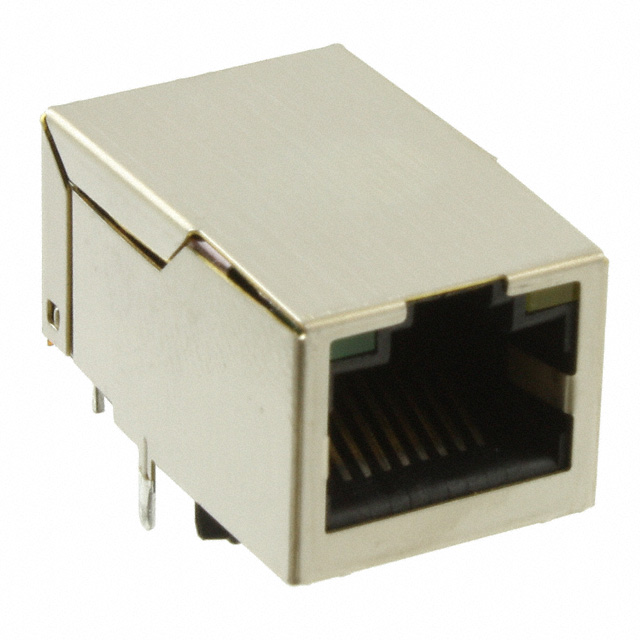

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXR1-0011NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXR1-0011NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXR1-0011NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.067 | $2.933 | $2.667 | $2.533 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.467 | $2.20 | $2.067 | $1.827 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXR1-0011NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17941 pcs | Data sheet | JXR1 Series Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | PULSEJACK™ JXR1 |
| Packaging | Tube | Other Names | 553-2049 JXR10011NL |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Thermoplastic | Height Above Board | 0.550" (13.97mm) |
| Features | Board Guide | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-TX, AutoMDIX |
