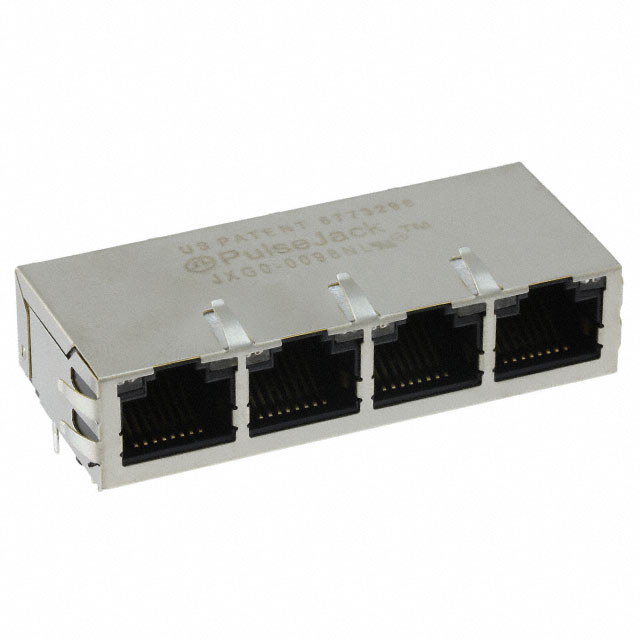

JXG0-0098NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXG0-0098NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXG0-0098NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXG0-0098NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 4PORT 1000 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 15 pcs | 30 pcs | ||
|---|---|---|---|---|---|
| $13.154 | $11.873 | $11.375 | |||
| 60 pcs | 105 pcs | 255 pcs | |||
| $10.664 | $10.309 | $9.74 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXG0-0098NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 4PORT 1000 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3480 pcs | Data sheet | JXG0-0098NL Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Copper Alloy | Series | PULSEJACK™ JXG0 |
| Packaging | Bulk | Other Names | 553-2816 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 4 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green, Amber - Green, Amber |
| Housing Material | Thermoplastic | Height Above Board | 0.545" (13.84mm) |
| Features | Board Guide | Detailed Description | 4 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100/1000 Base-T, AutoMDIX |
