JX80-0033NL

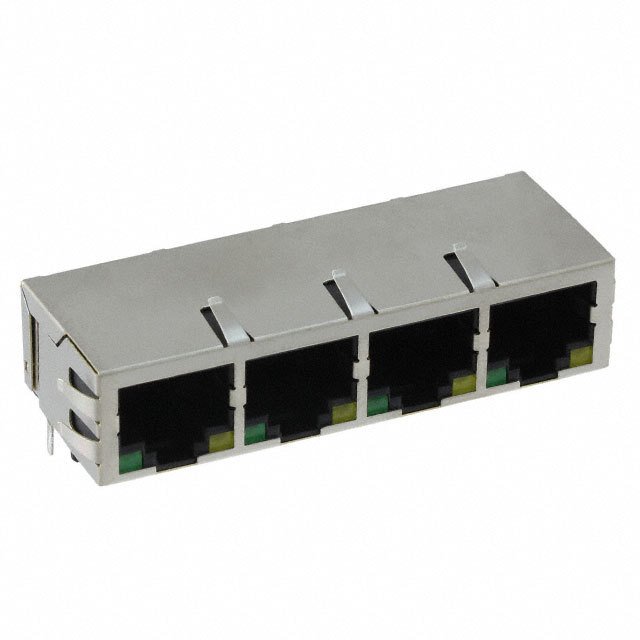

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JX80-0033NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JX80-0033NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JX80-0033NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 4PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 15 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $7.929 | $7.157 | $6.857 | $6.429 | ||
| 105 pcs | 255 pcs | 510 pcs | |||
| $6.215 | $5.872 | $5.70 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JX80-0033NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 4PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5627 pcs | Data sheet | JX80-0033NL Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Down | Shielding | Shielded, EMI Finger |
| Shield Material | Copper Alloy | Series | PULSEJACK™ JX80 |
| Packaging | Tray | Other Names | 553-3228 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 4 |
| Number of Cores per Jack | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Thermoplastic | Height Above Board | 0.536" (13.61mm) |
| Features | Board Guide | Detailed Description | 4 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-TX, AutoMDIX |
