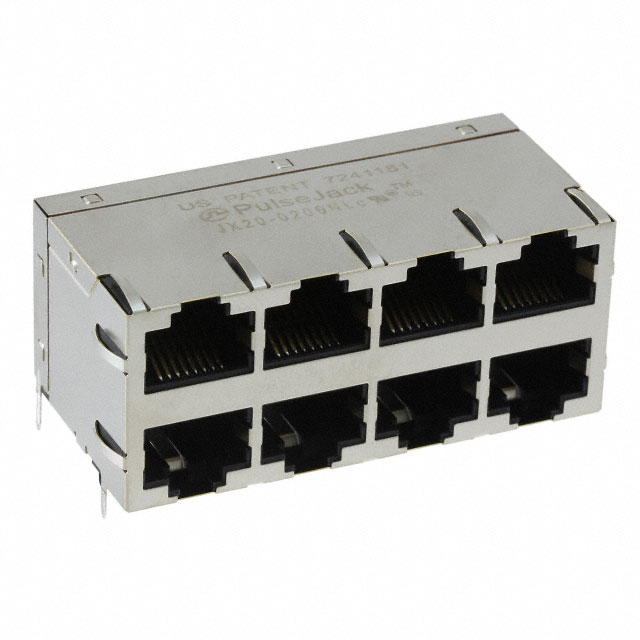

JX20-0206NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JX20-0206NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JX20-0206NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JX20-0206NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 8PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 32 pcs | ||
|---|---|---|---|---|---|
| $14.026 | $12.66 | $12.13 | |||
| 56 pcs | 104 pcs | 256 pcs | |||
| $11.371 | $10.992 | $10.386 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JX20-0206NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 8PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3655 pcs | Data sheet | JX20-0206NL |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up and Down | Shielding | Shielded, EMI Finger |
| Shield Material | Copper Alloy | Series | PULSEJACK™ JX2 |
| Packaging | Tray | Other Names | 553-3225 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 | Number of Ports | 8 |
| Number of Cores per Jack | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Does Not Contain LED |
| Housing Material | Thermoplastic | Height Above Board | 1.005" (25.53mm) |
| Features | Board Guide | Detailed Description | 8 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-TX, AutoMDIX |
