JX00-0027NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JX00-0027NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JX00-0027NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JX00-0027NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.992 | $2.861 | $2.601 | $2.471 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.406 | $2.146 | $2.016 | $1.782 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JX00-0027NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20542 pcs | Data sheet | JX00-0027NL Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Down | Shielding | Shielded, EMI Finger |
| Shield Material | Copper Alloy | Series | PULSEJACK™ JX0 |
| Packaging | Bulk | Other Names | 553-3899-5 JX00-0027NL-ND |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Thermoplastic | Height Above Board | 0.545" (13.84mm) |
| Features | Board Guide | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-TX, AutoMDIX |
- Related products
- Related news
Related products

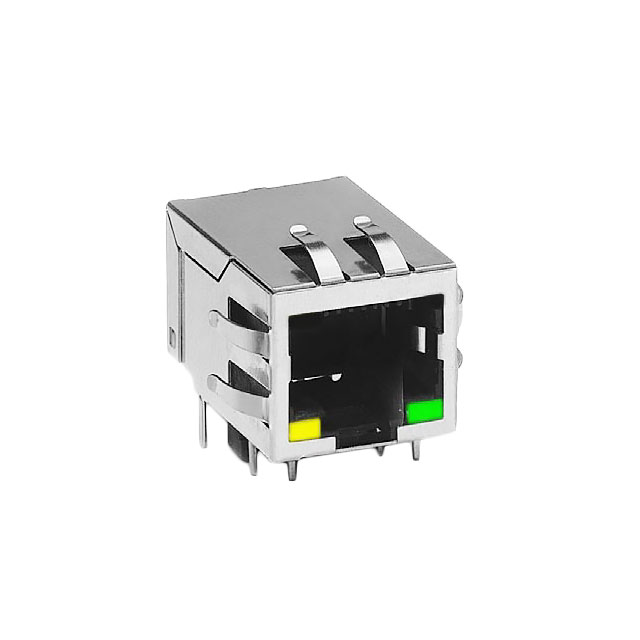

- Part#:
