JW0-0009NL

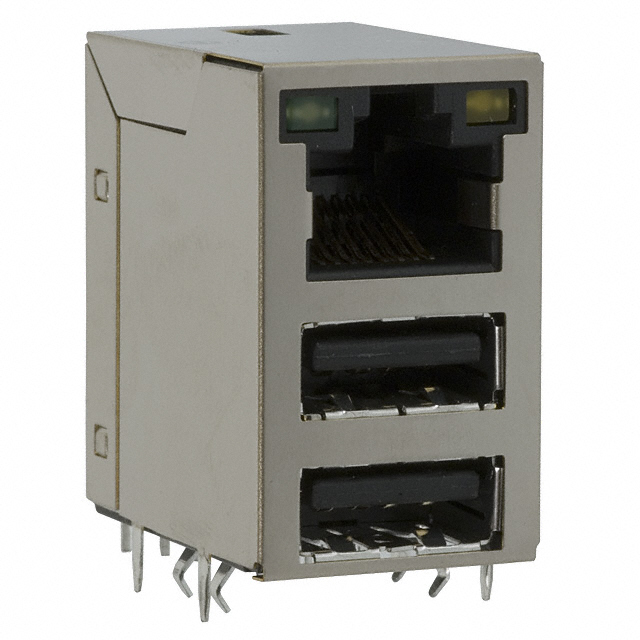

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JW0-0009NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JW0-0009NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JW0-0009NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.60 | $3.442 | $3.129 | $2.973 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.894 | $2.582 | $2.425 | $2.143 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JW0-0009NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15689 pcs | Data sheet | JW,JY SeriesJW0-0009NL Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded |
| Shield Material | Brass | Series | PULSEJACK™ JW |
| Packaging | Tray | Other Names | 553-1369 JW00009NL |
| Orientation | 90° Angle (Right) | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Thermoplastic | Height Above Board | 1.221" (31.01mm) |
| Features | Board Lock | Detailed Description | 1 Port RJ45 with USB A, Dual Magjack Connector Through Hole 10/100 Base-TX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Finish | Gold | Connector Type | RJ45 with USB A, Dual |
| Applications | 10/100 Base-TX |
