JK0-0136NL

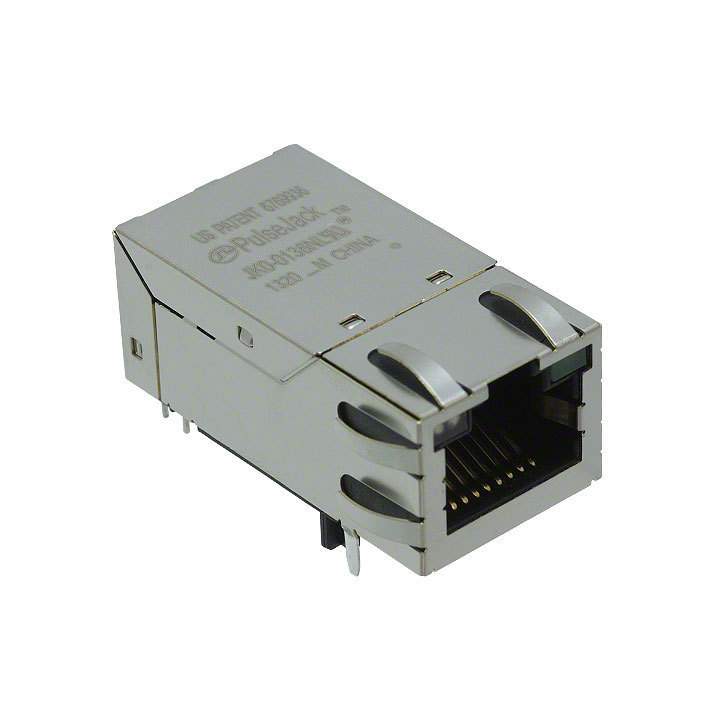

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JK0-0136NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JK0-0136NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JK0-0136NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1 PORT 1000 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 90 pcs | |
|---|---|---|---|---|---|
| $3.641 | $3.483 | $3.167 | $3.008 | ||
| 135 pcs | 270 pcs | 540 pcs | 1035 pcs | ||
| $2.929 | $2.613 | $2.454 | $2.169 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JK0-0136NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1 PORT 1000 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15568 pcs | Data sheet | JK0-01xxNL Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | PULSEJACK™ JK0 |
| Packaging | Bulk | Other Names | 553-2128-5 553.-2128-5 553.-2128-5-ND JK00136NL |
| Orientation | 90° Angle (Right) | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Yellow, Green - Green |
| Housing Material | Thermoplastic | Height Above Board | 0.546" (13.87mm) |
| Features | Board Guide | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100/1000 Base-T, AutoMDIX |
