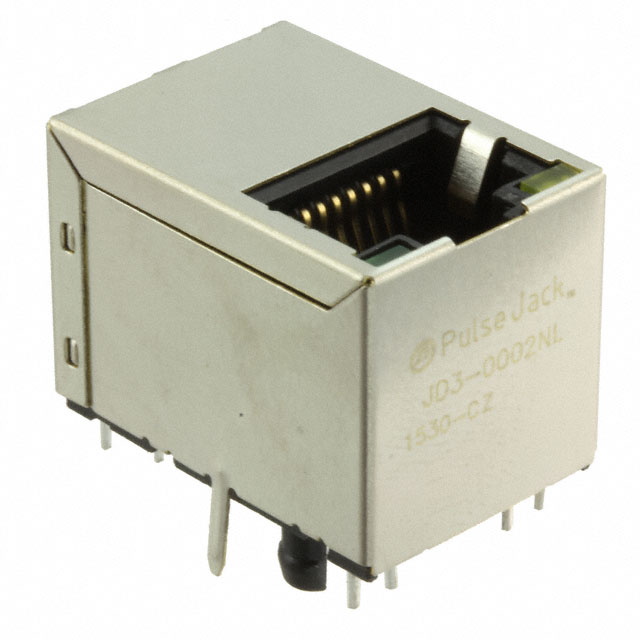

JD3-0002NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JD3-0002NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JD3-0002NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JD3-0002NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 1000 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.649 | $2.538 | $2.317 | $2.207 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.097 | $1.876 | $1.766 | $1.545 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JD3-0002NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 1000 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24483 pcs | Data sheet | JD3-0002NL Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | User Selectable | Shielding | Shielded |
| Shield Material | Brass | Series | PULSEJACK™ JD3 |
| Packaging | Tray | Other Names | 553-2610 |
| Orientation | Vertical | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Yellow - Green |
| Housing Material | Thermoplastic | Height Above Board | 0.664" (16.87mm) |
| Features | Board Lock | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 6.00µin (0.152µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100/1000 Base-T, AutoMDIX |
