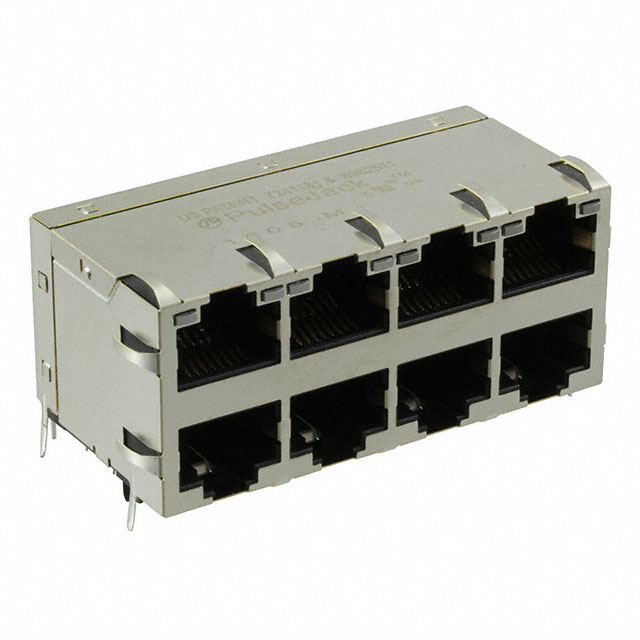

J20-0114NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy J20-0114NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy J20-0114NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | J20-0114NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 16PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 32 pcs | ||
|---|---|---|---|---|---|
| $17.032 | $16.029 | $15.528 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | J20-0114NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 16PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2418 pcs | Data sheet | J20-0114NL |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up and Down | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | PULSEJACK™ J2 |
| Packaging | Bulk | Other Names | 553-3257 J20-0114NL-ND |
| Orientation | 90° Angle (Right) | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 2 | Number of Ports | 8 |
| Number of Cores per Jack | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| LED Color | Green, Yellow - Green, Yellow | Housing Material | Thermoplastic |
| Height Above Board | 1.005" (25.53mm) | Features | Board Guide |
| Detailed Description | 8 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | RJ45 | Applications | 10/100 Base-TX, AutoMDIX |
