J1026F01PNL

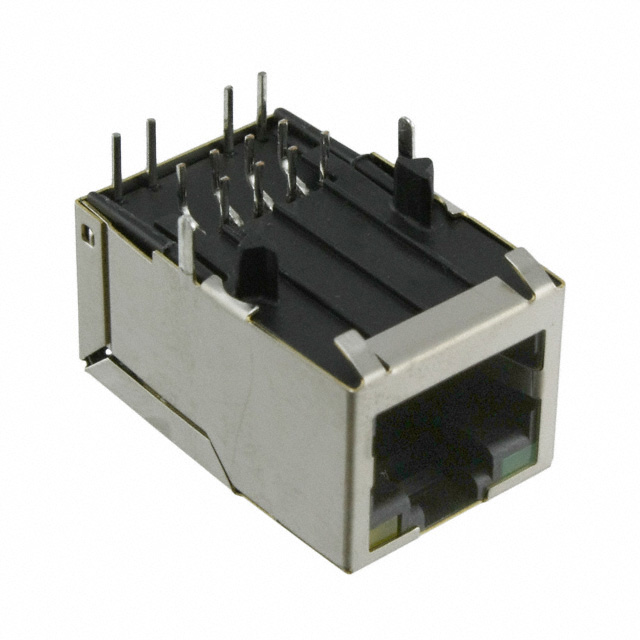

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy J1026F01PNL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy J1026F01PNL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | J1026F01PNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $3.144 | $3.006 | $2.732 | $2.596 | ||
| 120 pcs | 270 pcs | 510 pcs | 1020 pcs | ||
| $2.527 | $2.254 | $2.118 | $1.872 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | J1026F01PNL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20461 pcs | Data sheet | J1,JP Series |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded |
| Shield Material | Brass | Series | PULSEJACK™ J1 |
| Packaging | Tube | Other Names | 553-1610-5 J1026F01PNL-ND |
| Orientation | 90° Angle (Right) | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Thermoplastic | Height Above Board | 0.550" (13.97mm) |
| Features | Board Guide | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-TX |
