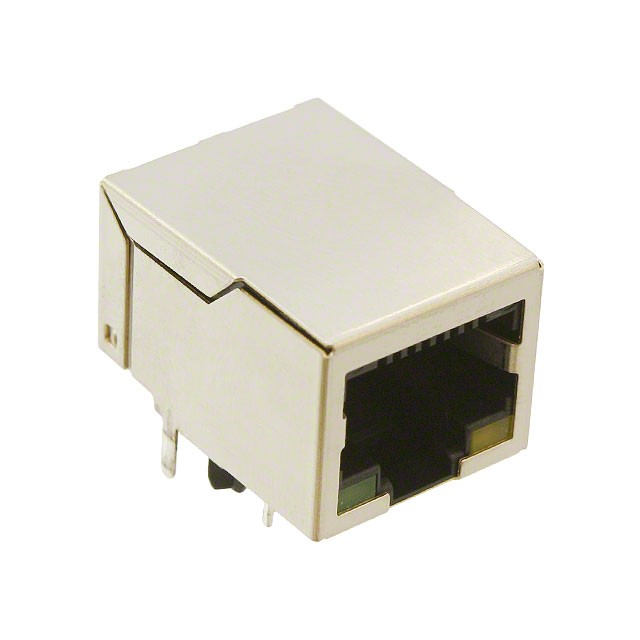

J0006D01BNL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy J0006D01BNL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy J0006D01BNL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | J0006D01BNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN MAGJACK 1PORT 100 BASE-TX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $2.45 | $2.347 | $2.143 | $2.041 | $1.939 | |
| 270 pcs | 510 pcs | 1020 pcs | 2520 pcs | ||
| $1.735 | $1.633 | $1.429 | $1.357 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | J0006D01BNL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21891 pcs | Data sheet | J0 Series Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Down | Shielding | Shielded |
| Shield Material | Brass | Series | PULSEJACK™ J0 |
| Packaging | Bulk | Other Names | 553-1849 J0006D01BNL-ND |
| Orientation | 90° Angle (Right) | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Thermoplastic | Height Above Board | 0.545" (13.84mm) |
| Features | Board Guide | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 15.0µin (0.38µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-TX, AutoMDIX |
