HX5020

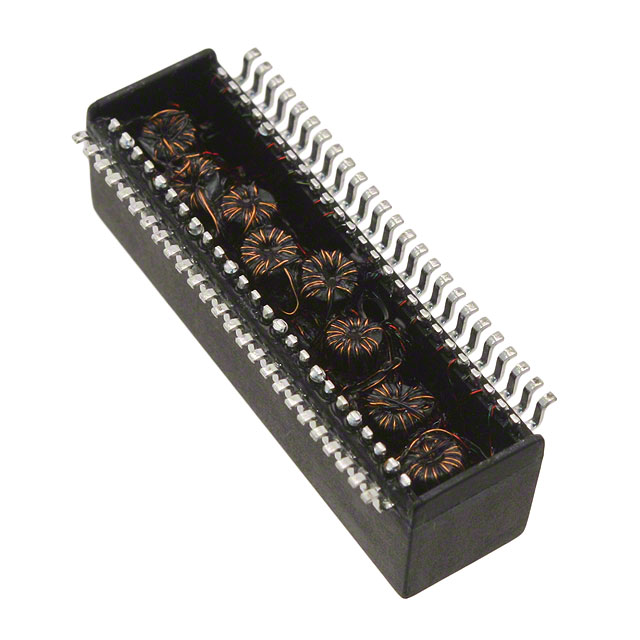

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HX5020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HX5020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HX5020 |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | MODULE DL GIGABIT ETHER LAN 48P |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HX5020 | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | MODULE DL GIGABIT ETHER LAN 48P | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4668 pcs | Data sheet | 1000Base-T Magnetics Modules |
| Category | Transformers | Weight | 0.06 oz (1.71g) |
| Turns Ratio - Primary:Secondary | 1CT:1CT | Transformer Type | LAN 1000 Base-T |
| Size / Dimension | 1.100" L x 0.297" W (27.94mm x 7.54mm) | Series | - |
| Packaging | Bulk | Other Names | 553-1198 |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Inductance | - | Height - Seated (Max) | 0.341" (8.66mm) |
| Energy Time (E.T.) | - |
